3D Sectional Torso Phantom

Model 600
INCLUDES 12 INTERNAL ORGAN TISSUES

The CIRS Model 600 Anthropomorphic Torso Phantom is designed to provide an accurate simulation of an average torso (22 cm posterior-anterior thickness) for medical imaging and dosimetry applications. The epoxy materials used to fabricate the phantom provide optimal tissue simulation between the Diagnostic and Therapy energy range (40 keV to 20 MeV).

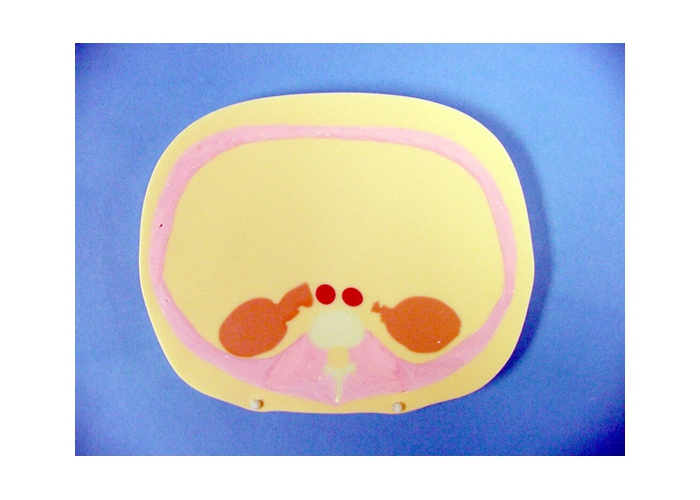

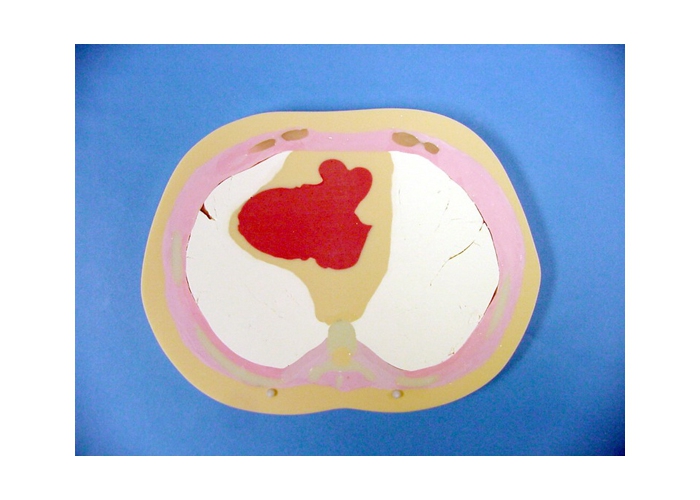

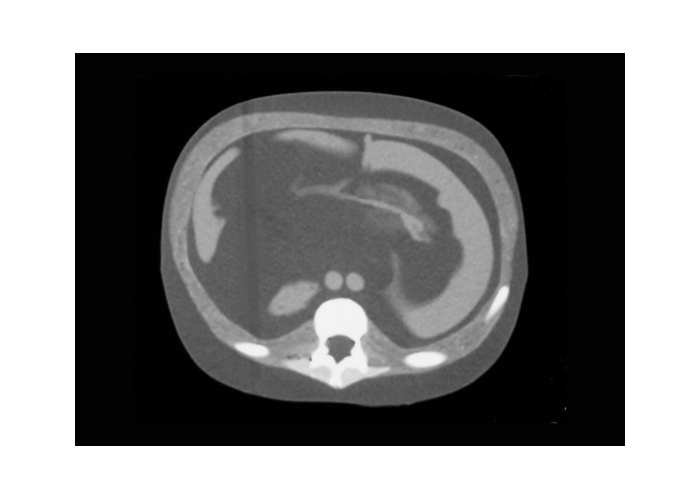

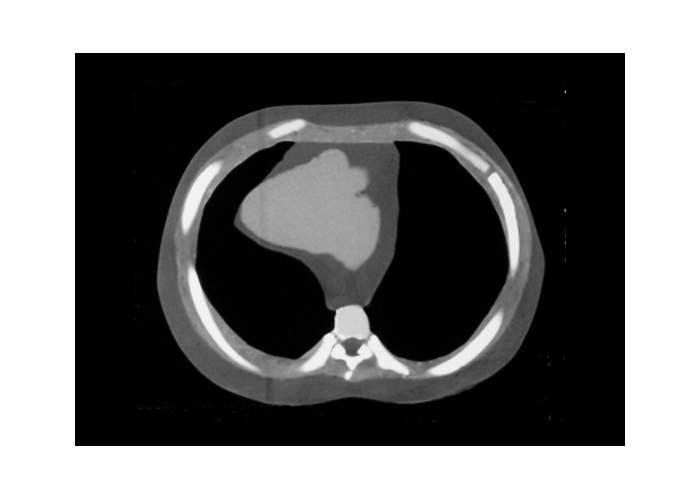

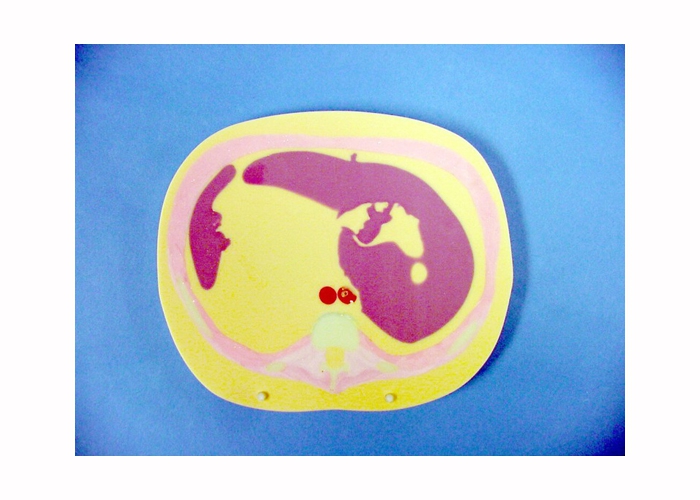

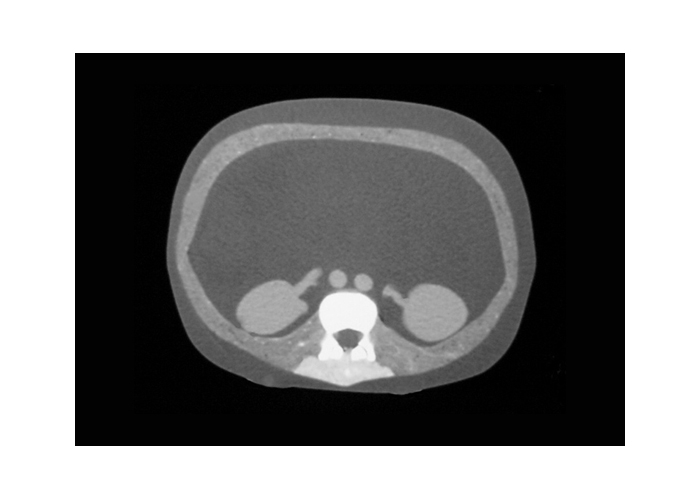

Unlike other cross-sectional dosimetry phantoms, the Model 600 includes internal organ structures such as the lungs, heart, liver, kidneys, spleen and pancreas. All simulated organs match the tissue density of actual organs and can be clearly visualized.

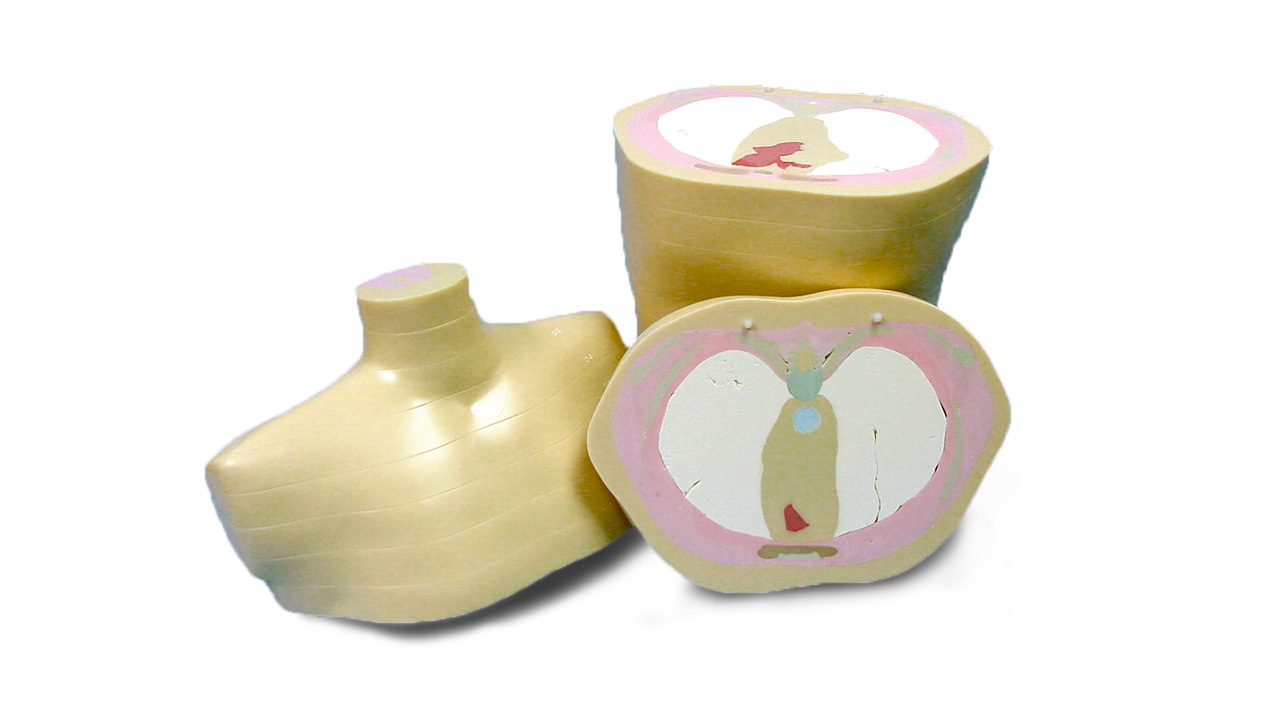

The lower portion of the phantom contains a soft bolus material simulating a mix of 30 percent adipose and 70 percent muscle tissue. Simulated muscle material layers the rib cage and vertebral column. The exterior envelope simulates a mix of 43 percent adipose and 57 percent muscle tissue. Standard phantoms consist of 25 mm thick contiguous sections.

Features:
  • Includes internal organ structures
  • Ideal for calibration, QA and training purposes when specific internal organs are of interest
  • Can be configured to accommodate variety of dosimeters
  • Usable on any X-ray imaging or treatment device

Data Sheet

3D Sectional Torso Phantom: Data Sheet

Videos

References

Publication References

Seppi EJ, Munro P, Johnsen SW, et al. Megavoltage cone-beam computed tomography using a high-efficiency image receptor.International Journal of Radiation Oncology, Biology, Physics. 2003; 55(3):793-803. View
