Radiography Fluoroscopy QA Phantom

Model 903
SOLID ASSESSMENT TOOL FOR X-RAY IMAGE QUALITY PROGRAMS

The CIRS Model 903 Radiography/Fluoroscopy QA Phantom is designed to provide physicians with an opportunity for a comprehensive review of their Radiography/Fluoroscopy facility image quality programs. The phantom can be used for both initial QA assessment and routine monthly QA testing to help ensure patients are receiving the best possible X-ray examinations.

Our CIRS Model 903 is manufactured from Polymethyl Methacrylateyeate (PMMA) equivalent epoxy that offers the same x-ray attenuation properties as PMMA with significantly greater durability.

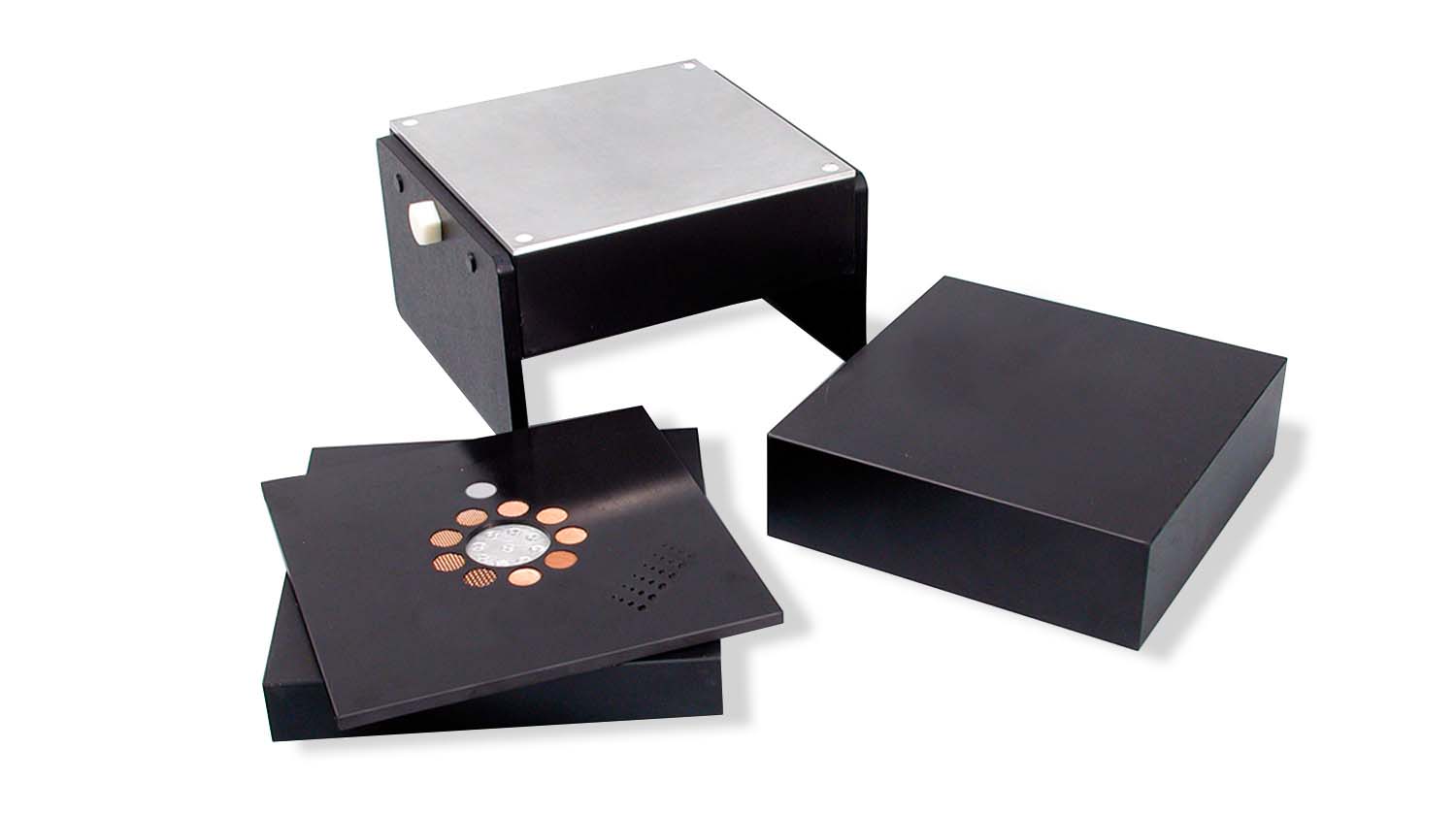

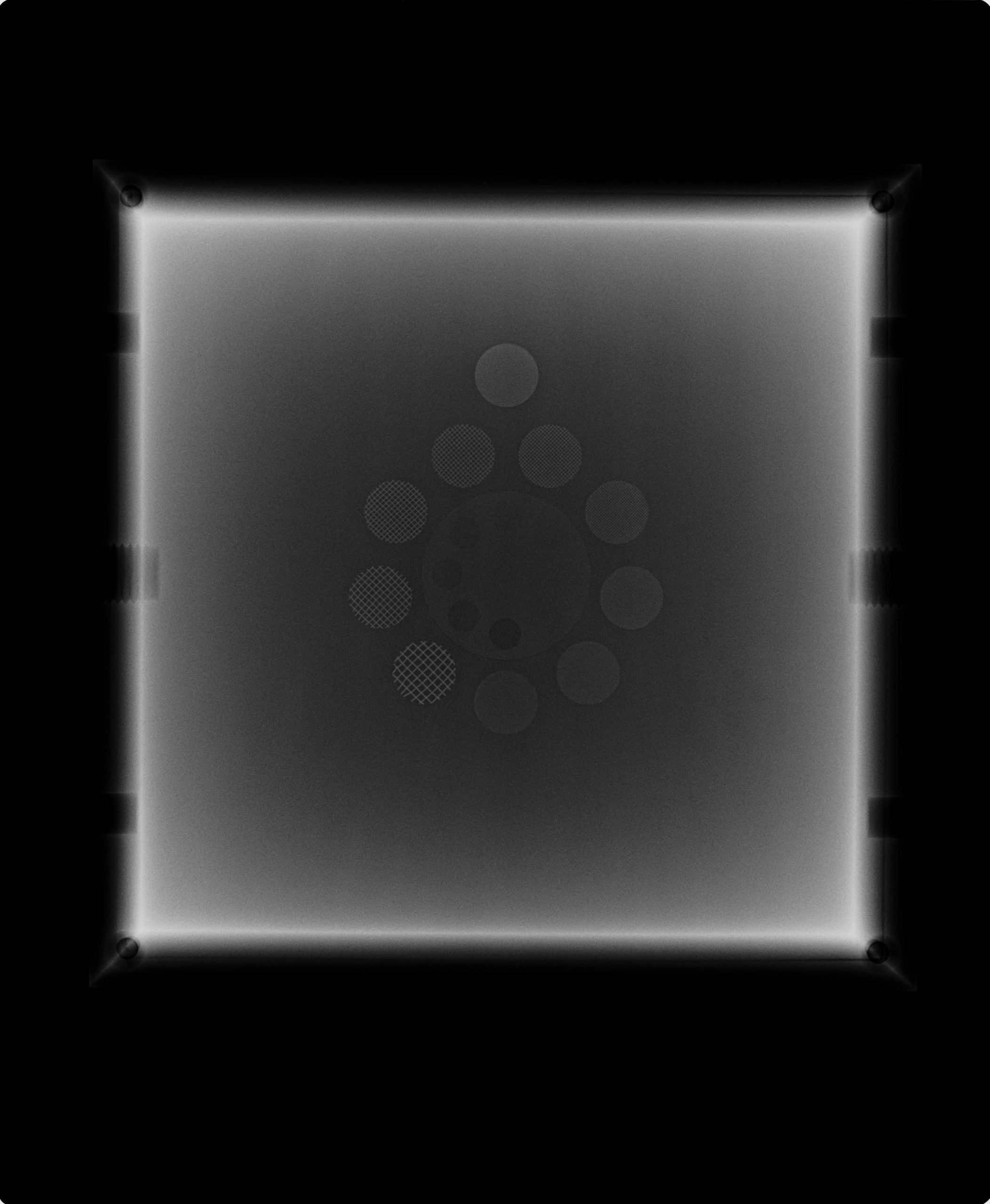

The overall phantom measures 25.4 cm wide x 25.4 cm long x 20.7 cm high and consists of three attenuation plates, one test object plate and a detachable stand for easy, reproducible set-up. Test objects include high-resolution copper mesh targets from 12 – 80 lines per inch, two separate contrast- detail test objects.

Optional accessories are available to evaluate iodine contrast visibility and linearity as well as digital subtraction effectiveness under various conditions.

Features:
  • Suitable on CR, DR & Fluoroscopy systems
  • Durable PMMA-equivalent epoxy
  • Multiple configurations
  • Assesses:
    • Entrance skin dose
    • Minimum detectable contrast (%)
    • Low-contrast resolution
    • Optical density
    • High-contrast resolution
    • DSA function and arterial visibility
