ATOM MAX Dental & Diagnostic Head Phantom

Model 711-HN

The CIRS ATOM Max Dental and Diagnostic Head Phantom is a standard of reference for diagnostic radiology of the head. The phantom is designed to assist technical and clinical staff in the selection, monitoring, training and verification of scanning parameters common to most radiological procedures requiring fine anatomical details.

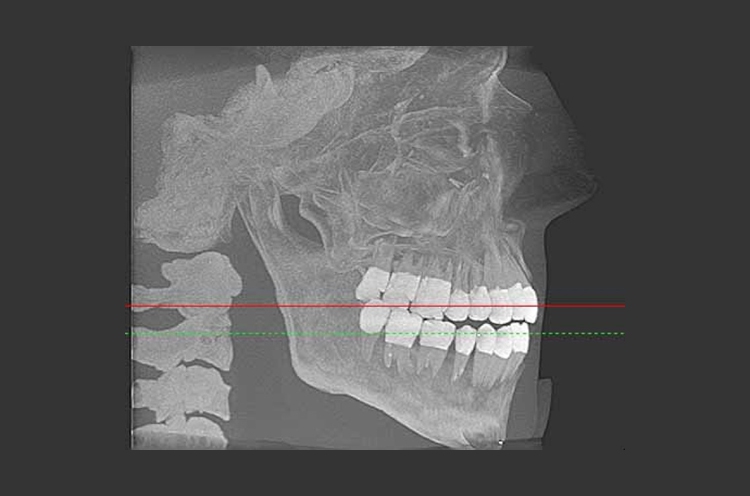

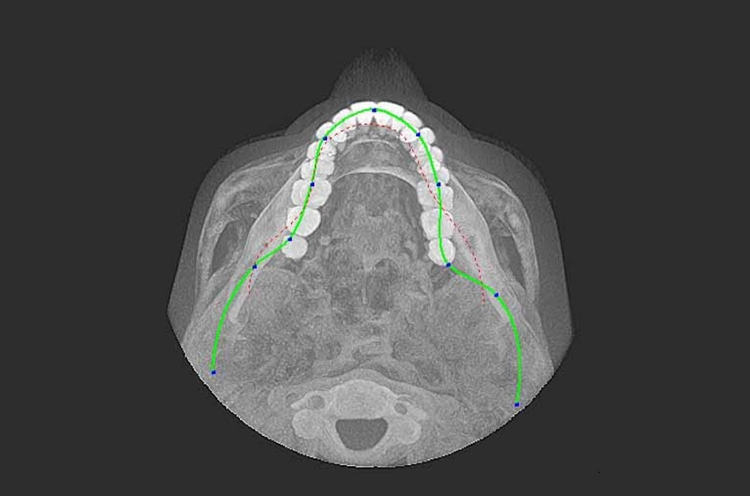

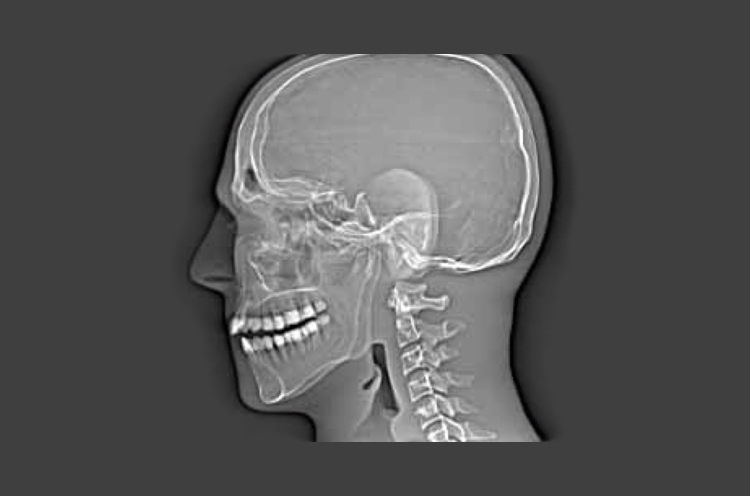

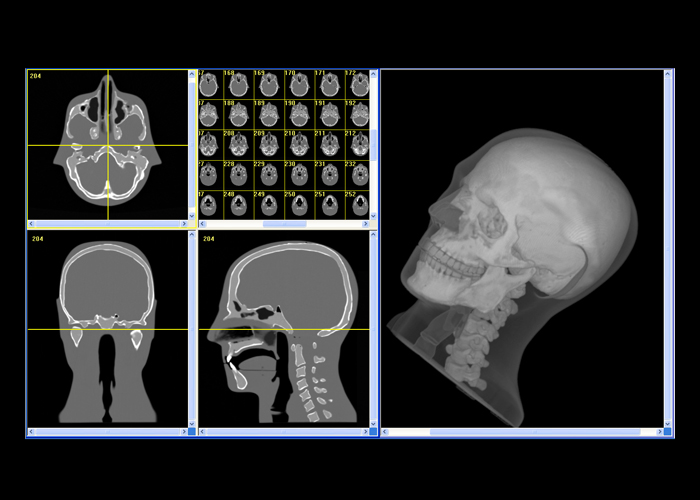

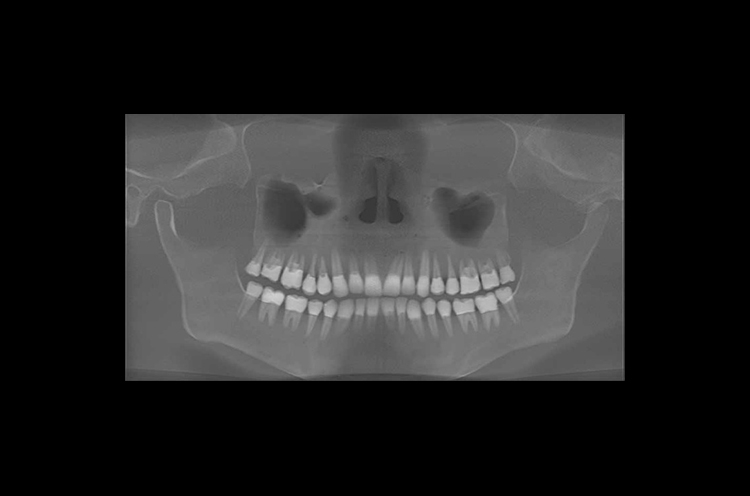

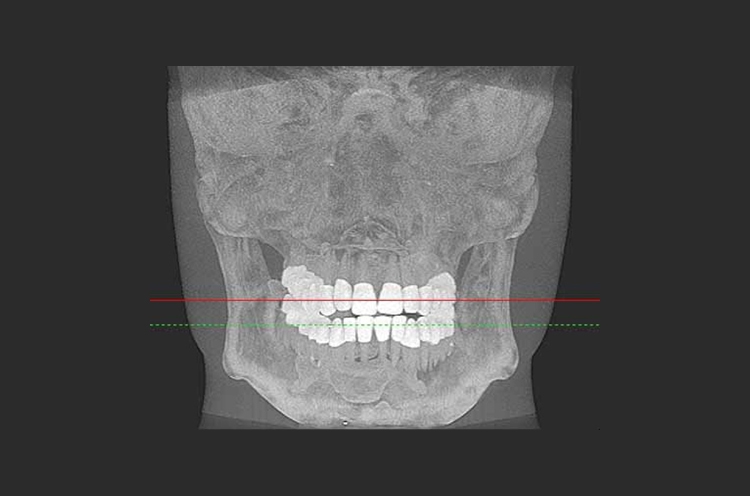

The Model 711-HN provides a consistent tool for researchers, clinicians and technologists. It is ideal for determining optimum system settings, commissioning new equipment, monitoring system performance and training in dental X-ray, panoramic X-ray, CT and cone beam CT procedures.

The phantom includes an adjustable stand for positioning within a cone beam CT or panoramic X-ray system. The jaw of the phantom is slightly opened and front teeth are vertically aligned to replicate correct positioning with a bite guide. Please note that an actual bite guide cannot be positioned in this product.

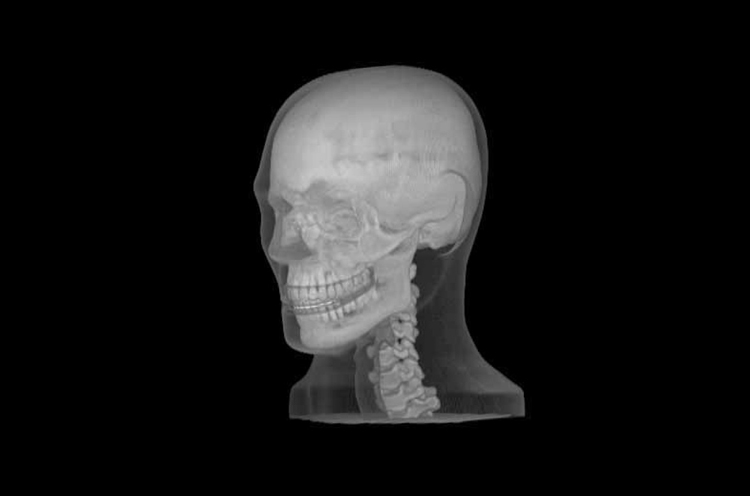

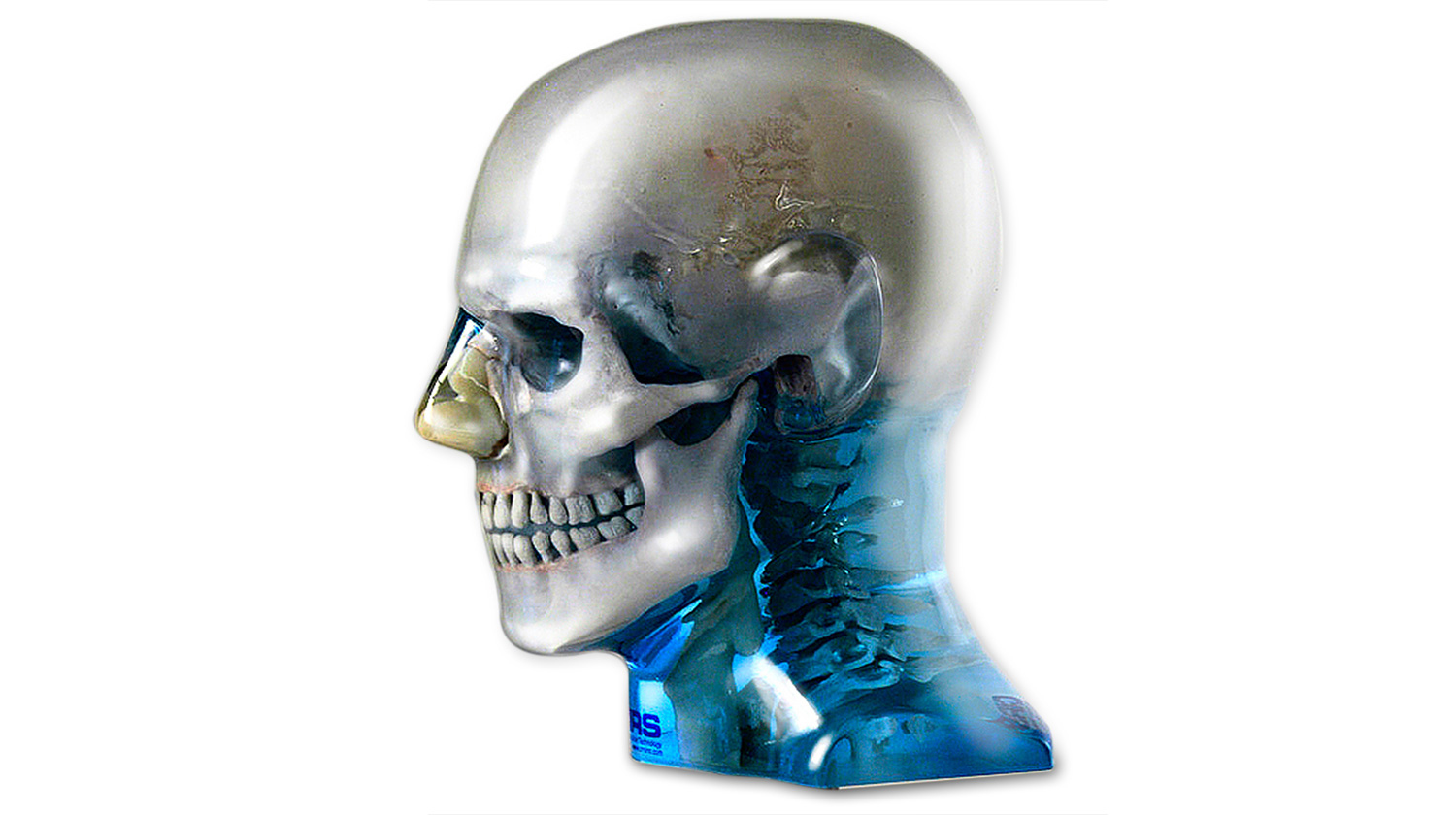

Our phantom is constructed of proprietary tissue equivalent materials. ATOM®Max is made of tissue simulating resins that mimic the X-ray attenuation properties of human tissue for both CT and therapy energy ranges (50 keV-25 MeV). The Model 711-HN approximates the average male human head in both size and structure. The phantom includes detailed 3D anthropomorphic anatomy including brain, bone, larynx, trachea, sinus, nasal cavities and teeth. The bones contain both cortical and trabecular separation. The teeth include distinct dentine, enamel and root structure including the nerve. The sinus cavities are fully open.

  • Includes detailed anatomical features
  • Frankfurt plane identified to ensure proper alignment
  • Tissue Equivalent from 50 keV to 25 MeV
  • Positioning stand with six degrees-of-freedom
  • Foam lined carry case included
  • 5 year warranty

Data Sheet

ATOM MAX Dental & Diagnostic Head Phantom: Data Sheet

'A fast and monolithic prototype clinical proton radiography system optimized for pencil beam scanning'. Medical Physics. 2020; Wiley Online Library. View
'BITEWING DOSIMETRY OF 3-DIMENSIONAL INTRAORAL TOMOSYNTHESIS DENTAL X-RAY IMAGING SYSTEM'. Oral Surgery, Oral Medicine, Oral Pathology and Oral Radiology. 2020; 130 (2): e62-e63. Elsevier. View
'A prototype clinical proton radiography system'. arXiv preprint arXiv:2009.04652. 2020; View
'A Comparison of Contemporary Portable X-Ray Systems'. Oral Surgery, Oral Medicine, Oral Pathology and Oral Radiology. 2020; 130 (2): e60. Mosby. View
'Can modifying shielding, field of view, and exposure settings make the effective dose of a cone-beam computed tomography comparable to traditional radiographs used for orthodontic diagnosis?'. The Angle Orthodontist. 2020; 90 (5): 655-664. Edward H. Angle Society of Orthodontists. View


Model: 711-HN Modalities: ,
