3D Calibration Phantom

Model ATS 560H
Evaluate Image System Performance

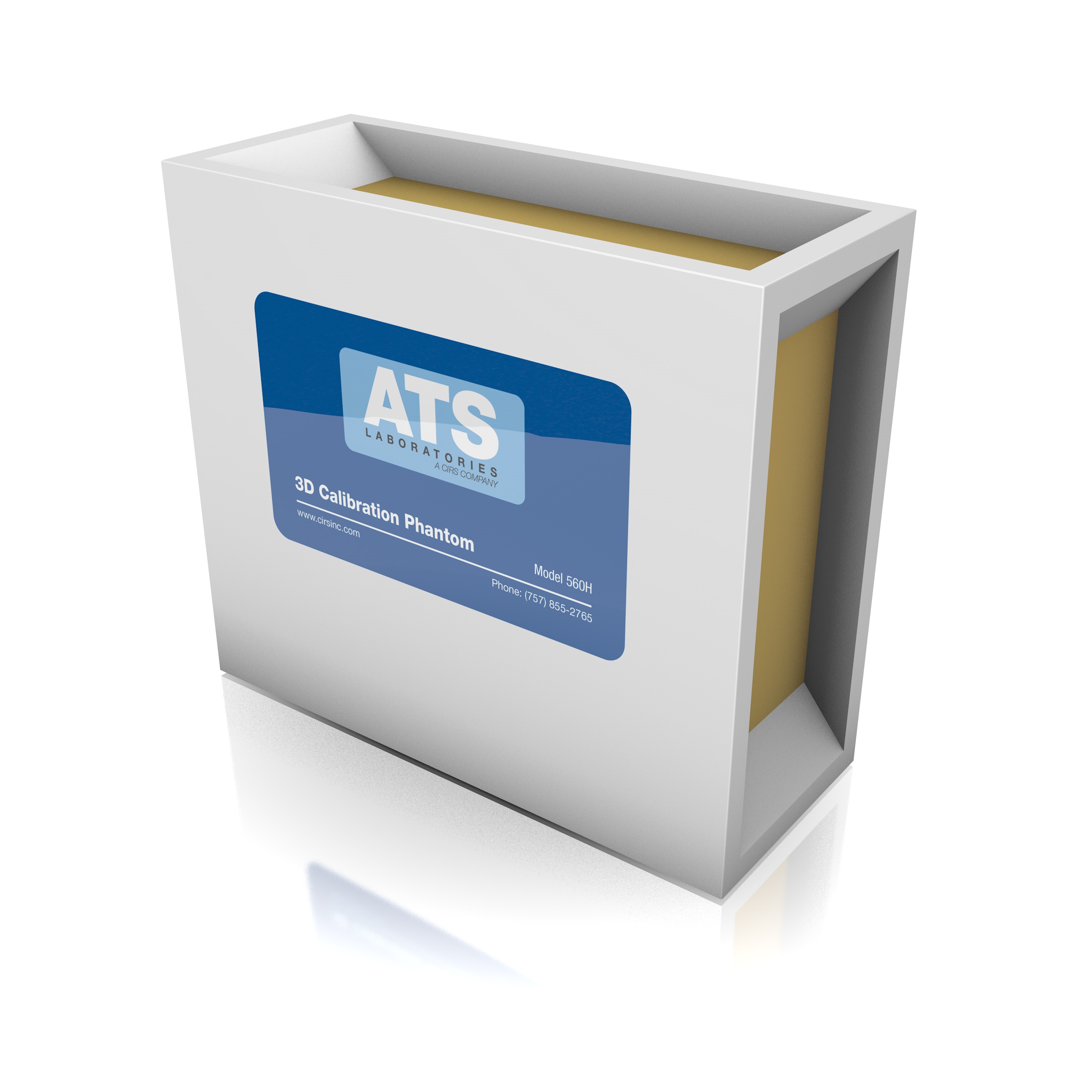

The CIRS Model ATS 560H rubber-based, tissue-mimicking phantom provides a basic means of evaluating an imaging system’s performance along with its 3D volumetric measurements.

The phantom combines monofilament line targets, six non-echogenic cylindrical targets of varying sizes and a 3D egg-shaped target structure. The monofilament targets have a diameter of 0.12 mm and are arranged in four groups of line targets to evaluate the vertical and horizontal calibration measurements, axial-lateral resolution and the dead zone.

Performance measures:
  • Uniformity
  • Depth of Penetration
  • Beam Profile/ Focal Zone/ Lateral Response Width
  • Vertical Distance Measurement
  • Horizontal Distance Measurement
  • Axial and Lateral Resolution
  • Contrast Resolution
  • Volume Measurements
  • Dead Zone Assessment
