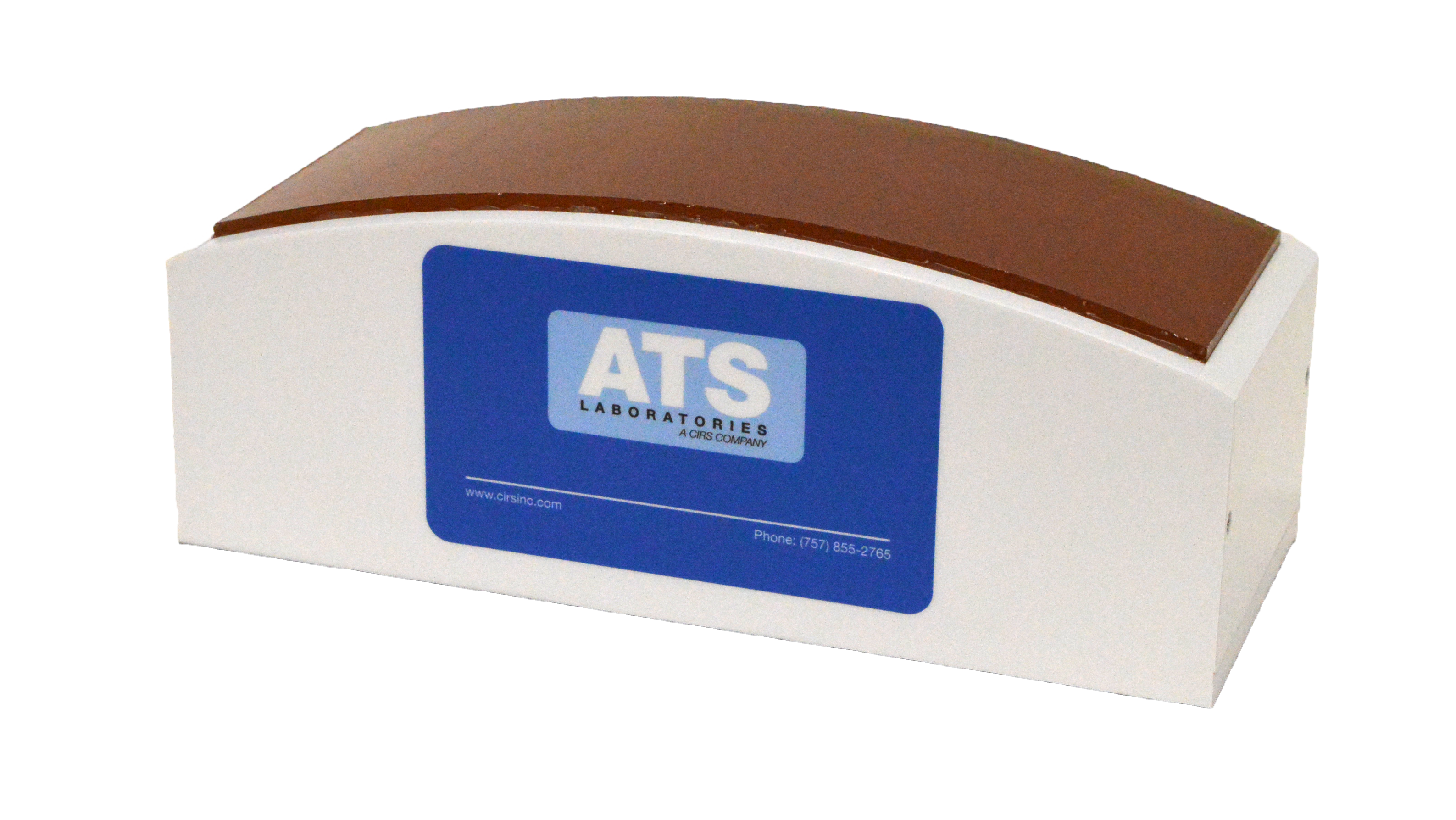

Urethane Ultrasound Phantoms are relied on for training and QA testing of B-mode ultrasound systems. A selection of models supports your clinical needs and helps you meet requirements.


Ensure your ultrasound systems are accurately imaging complex cases. Consistent testing with your ultrasound devices means greater confidence in your patient assessments. Plus, an enhanced 4-year warranty is one of the longest warranties available for ultrasound QA phantoms.

Maintain Compliance
The Urethane Ultrasound Phantoms are generally compatible with AIUM, ACR, AAPM, IEC 62736, IPEM 102, and EFSUMB TQA QA Guidelines.

Suite of Offerings
Our Urethane Phantoms suite offers precisely spaced pin targets and fibers, and varying surfaces, for testing various applications.


Multi-Purpose Phantom

  • Complete B-Mode QA Test Coverage
  • Evaluate the full range of clinical imaging frequencies
  • Combination of monofilament line targets for distance measurements and tissue-mimicking target structures of varying sizes and contrasts.

Multi-Purpose & Endoscopic Phantom

  • Complete B-Mode QA Test Coverage
  • Evaluate the full Range of Clinical Imaging Frequencies
  • New and improved scan surface design to easily accommodate linear, sector, endoscopic probes, and mechanical sector probes such as those used for rectal scanning.

Small Parts Phantom

  • Detect small anatomical features
  • Evaluate the vertical and horizontal calibration measurements, dead zone and axial-lateral resolution
  • Enhanced axial-lateral resolution targets

3D Calibration Phantom

  • Special Purpose Phantom
  • Evaluate image system’s performance along with its 3D volumetric measurements

Invenia ABUS Phantom

  • Special Purpose Phantom
  • Designed for use with GE’s Invenia ABUS scanner


Specifications

Urethane Properties

Attenuation Coefficient

0.5 dB/cm/MHz ± 10%

Freezing Point

< -40° C

Melting Point

Above 100° C

Frequency Range

2 - 18 MHz

Speed of Sound

1450 m/s ±1.0% at 23°

Multi-Purpose Phantom

Dimensions

23.4 cm x 20.5 x 9.5 cm (9” x 8” x 4”)

Weight

7 lbs (3.1 kg)

Housing Material

PVC

Wall Thickness

1.0 cm

Scan Surface Dimensions

(2) 15.5 x 7.5 cm; (2) 14.0 x 7.5 cm

Multi-Purpose & Endoscopic Phantom

Dimensions

27 cm x 21.5 x 9.6 cm (11” x 8” x 4”)

Weight

10 lbs (4.5 kg)

Housing Material

PVC

Scan Surfaces

2

Scan Wells

1 cm

Line Targets

Material: Monofilament nylon
Diameter: 0.12 mm

Endocavity

Opening: Ø 26.9mm x 71mm deep
Slots: 12.7 mm; Ø 0.5” x 10 mm deep (from bottom of the curve to the flat surface)

More
Small Parts Phantom

Dimensions

8 cm x 11 x 11 cm (3” x 4” x 4”)

Weight

7 lbs (3.1 kg)

Housing Material

PVC

Scan Surface Dimensions

25 cm x 8 cm

Line Targets

Material: Monofilament nylon
Diameter: 0.08 mm

3D Calibration Phantom

Dimensions

23.4 cm x 20.5 x 9.5 cm (9” x 8” x 4”)

Weight

7 lbs (3.1 kg)

Housing Material

PVC

Scan Surface Dimensions

(2) 17 x 8 cm; (2) 19 x 8 cm

Line Targets

Material: Monofilament nylon
Diameter: 0.12 mm

Invenia ABUS Phantom

Dimensions

28.5 cm x 12 x 10.6 cm
(11" x 5" x 4")

Weight

8 lbs (3.6 kg)

Housing Material

PVC

Scan Surface Dimensions

26.7 cm x 10 cm curved radius of 44.5 cm (17.5”)

Line Targets

Material: Monofilament nylon
