Multi-Purpose & Endoscopic Phantom

Model ATS 570

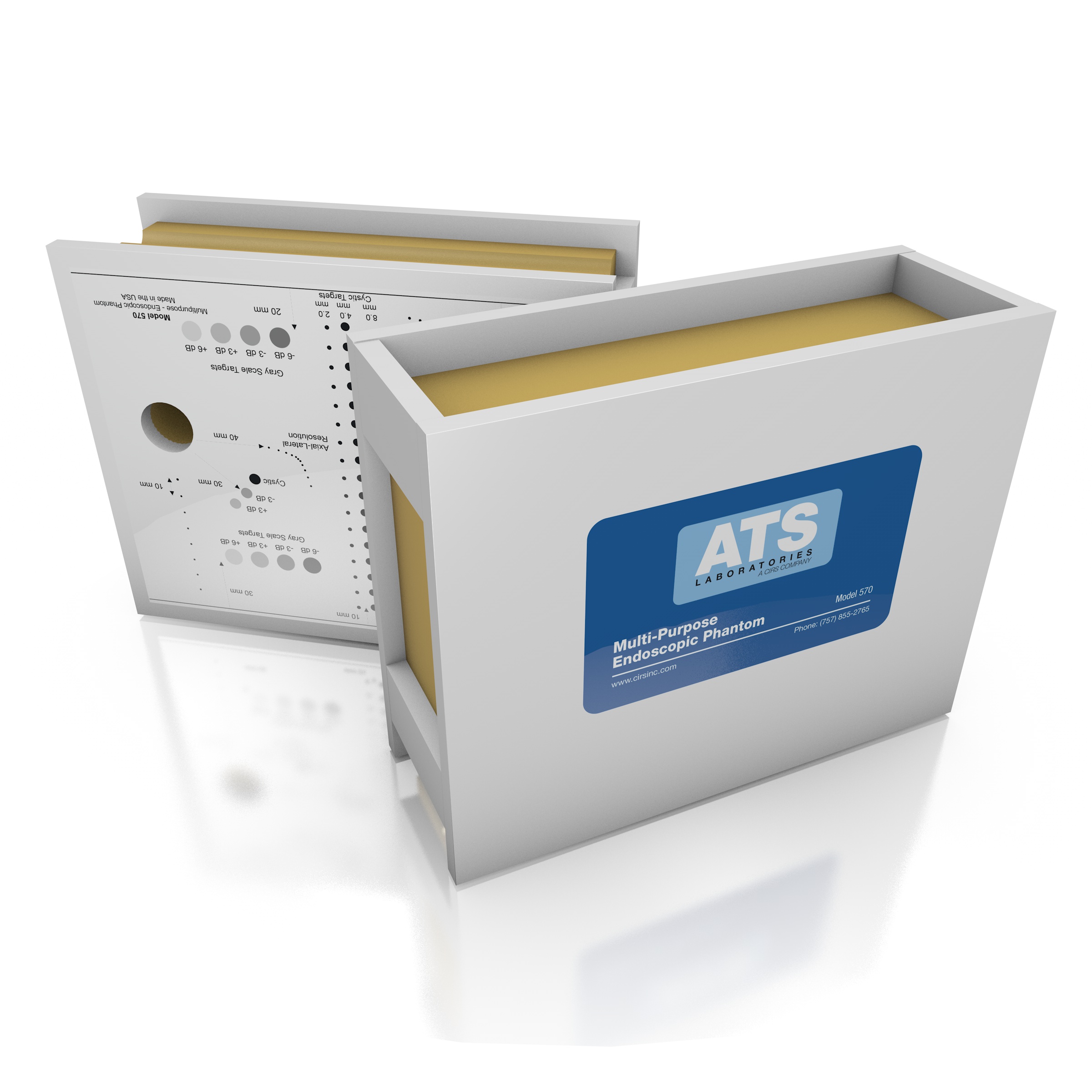

The Model 570 Multipurpose & Endoscopic phantom is an easy, comprehensive means of evaluating imaging systems over the full range of clinical imaging frequencies (2 MHz to 18 MHz). The phantom is designed with a combination of monofilament line targets for distance measurements and tissue mimicking target structures of varying sizes and contrasts. Due to the acoustic similarity of the background material and the target structures, artifacts caused by distortion, shadowing and enhancement have been eliminated. Four gray scale targets ranging

in contrast from +6 to -3 dB are provided to evaluate the system’s displayed dynamic range and gray scale processing performance.

The Model 570 offers a new and improved scan surface design to easily accommodate linear, sector, endoscopic probes and mechanical sector probes such as used for rectal scanning. All ATS urethane phantoms are guaranteed for the useful life of the phantom, defined as 10 years.

Key Tests with Model ATS 570:
  • Uniformity
  • Depth of Penetration
  • Beam Profile/ Focal Zone/ Lateral Response Width
  • Vertical Measurement Calibration
  • Horizontal Measurement Calibration Linear
  • Axial and Lateral Resolution
  • Horizontal Measurement Calibration Sector
  • Contrast Targets (Cysts)
  • Grayscale Contrast Sensitivity
  • Dead Zone Assessment

Data Sheet

Multi-Purpose & Endoscopic Phantom: Data Sheet

Model: ATS 570 Modalities: ,
