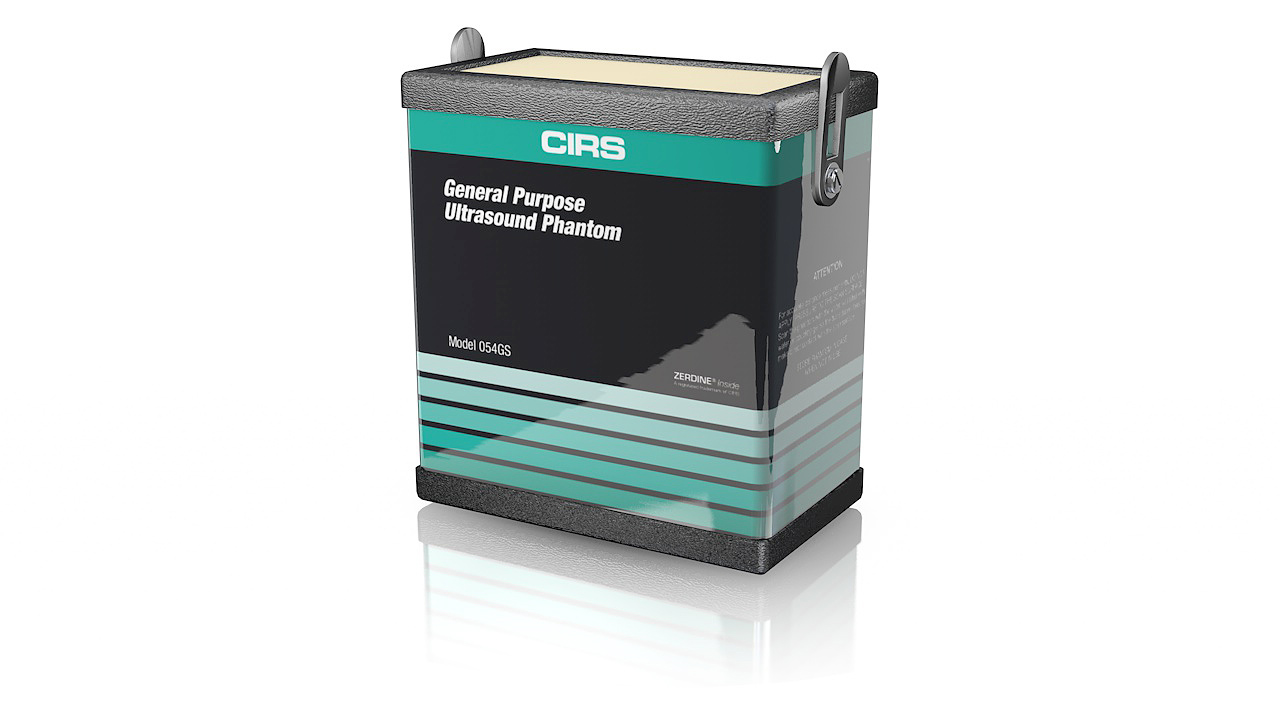

General Purpose Ultrasound Phantom

Model 054GS
Exceed ACR Accreditation Requirements
  • Test the full range of standard diagnostic ultrasound probes (2 MHz to 18 MHz)
  • Detachable water wells allow for testing curvilinear and endocavity probes
  • Ensure over ten years of reliable use through reinspection and repair services

Includes best in industry four-year warranty

The CIRS Model 054GS General Purpose Ultrasound Phantom contains gray scale targets and improved sensitivity targets that exceed the phantom requirements outlined in the ACR accreditation program.

The phantom is made of CIRS’ proprietary Zerdine® hydrogel polymer, which has been formulated to provide tissue mimicking properties including compatibility with harmonic imaging. To maximize phantom lifetime, this gel is contained in a rugged ABS plastic housing with a Saran-based laminate membrane.

CIRS ultrasound QA phantoms come standard with a robust housing, rugged carry case, 48-month warranty and user’s guide.

Key Tests with Model 054GS
  • Uniformity
  • Depth of Penetration
  • Beam Profile/ Focal Zone/ Lateral Response Width
  • Vertical Distance Measurement
  • Horizontal Distance Measurement
  • Axial and Lateral Resolution
  • Elevational Resolution
  • Contrast Resolution
  • Grayscale Contrast Sensitivity
  • Dead Zone Assessment

Data Sheet

General Purpose Ultrasound Phantom: Data Sheet

Compare all ultrasound products

Pasero, Eros Gian Alessandro; 'CMUT-BASED, PORTABLE, HANDHELD DEVICE ANALYSIS FOR DIAGNOSTIC ULTRASOUND IMAGING'. Master’s Degree Thesis. 2021; View
Hendriks, Gijs; Weijers, Gert; Chen, Chuan; Hertel, Madeleine; Lee, Chi-Yin; Dueppenbecker, Peter; Radicke, Marcus; Milkowski, Andy; Hansen, Hendrik; de Korte, Chris L; 'Ultrasound coherent plane-wave compound imaging: Image quality evaluation in phantoms and breast lesions'. The Journal of the Acoustical Society of America. 2021; 150 (4): A88-A88. Acoustical Society of America. View
Wodnicki, R; Sun, Y; Li, R; Stephens, D; Kang, H; Chen, R; Foiret, J; Zhou, Q; Ferrara, K 'Large Area 1.75 D Array for Liver Cancer by Tiling of Multi-Generation ASIC Array Modules'. 2020 IEEE International Ultrasonics Symposium (IUS). 2020; 44200. IEEE. View

Summary: The Model 54GS was used to show that electronic control of elevational focus in a novel 1.75D tranducer array improved spatial resolution by a factor 1.8 compared to a conventional 1D abdominal probe.
Wodnicki, Robert; 'Highly Integrated 2D Ultrasonic Arrays and Electronics for Modular Large Apertures'. 2020; University of Southern California.
Wodnicki, Robert; 'Highly Integrated 2D Ultrasonic Arrays and Electronics for Modular Large Apertures'. 2020; University of Southern California. View
Alycen Wiacek, Eduardo González, Muyinatu A. Lediju Bell 'CohereNet: A Deep Learning Architecture for Ultrasound Spatial Correlation Estimation and Coherence-Based Beamforming'. IEEE Trans Ultrason Ferroelectr Freq Control. 2020; 67 (12): Dec. IEEE. View
Cozzolino P, Stramare R, Udilano A, et al. Quality control of ultrasound transducers: analysis of evaluation parameters and results of a survey of 116 transducers in a single hospital. Radiol Med. 2010;115(4):668-77.  View
Hasegawa, H., & Kanai, H. (2014). Phase coherence factor with sub-aperture beamforming. 2014 IEEE International Ultrasonics Symposium.  View
Lediju bell MA, Dahl JJ, Trahey GE. Resolution and brightness characteristics of short-lag spatial coherence (SLSC) images. IEEE Trans Ultrason Ferroelectr Freq Control. 2015;62(7):1265-76.  View
Scorza, A., G. Lupi, S. A. Sciuto, L. Battista, and J. Galo. "A Preliminary Study on a Method for Objective Uniformity Assessment in Diagnostic Ultrasound Imaging." 2015 IEEE International Instrumentation and Measurement Technology Conference (I2MTC) Proceedings (2015): n. pag. Web.  View
Scorza, Andrea, Giulia Lupi, Salvatore Andrea Sciuto, Fabiano Bini, and Franco Marinozzi. "A Novel Approach to a Phantom Based Method for Maximum Depth of Penetration Measurement in Diagnostic Ultrasound: A Preliminary Study." 2015 IEEE International Symposium on Medical Measurements and Applications (MeMeA) Proceedings(2015): n. pag. Web.  View
Besson, A., R. Carrillo, D. Perdios, et al. "A Compressed-sensing Approach for Ultrasound Imaging." University Hospital Center and University of Lausanne, 2017. Web.  View

References

Model: 054GS Modalities: ,
