Pediatric Anthropomorphic Training Phantoms

Model 715 Series
SPoRT TM Sectional Pediatric Radiography Trainer

Available with common pediatric fractures and flexed appendages

An ideal addition to any imaging department or Radiologic Technology training program, the CIRS Model 715 Series can assist in the monitoring, training and improvement of parameters and protocols common to most pediatric imaging procedures.

SPoRT TM is designed to aid teaching and improvement of patient positioning, collimation and anatomical comprehension and it’s wide range of features facilitate effective instruction of safe, high quality, pediatric imaging.

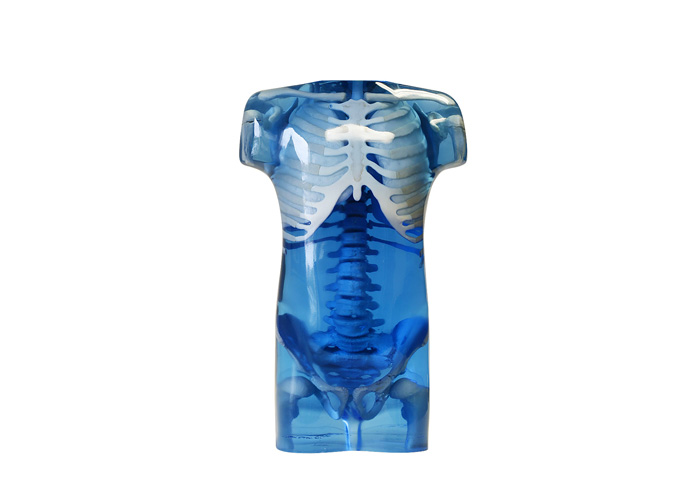

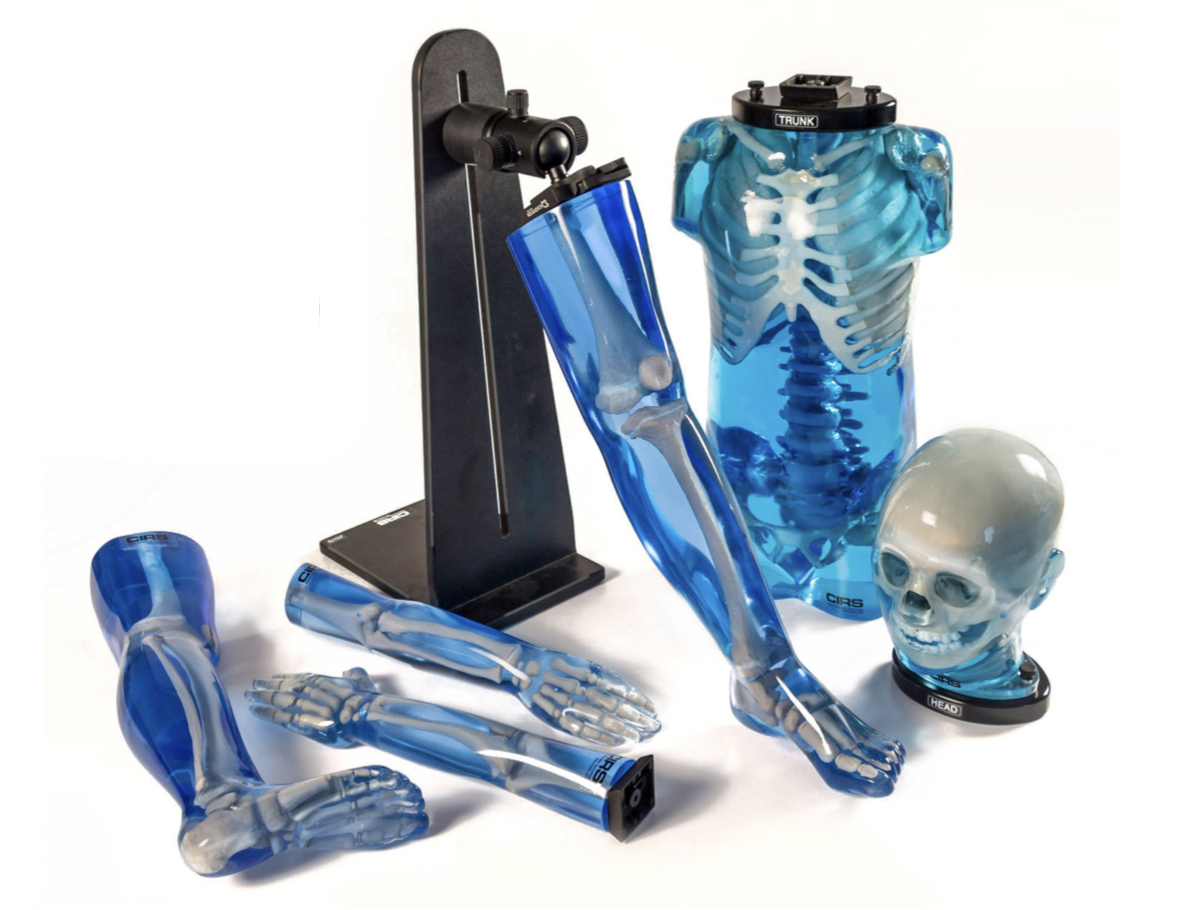

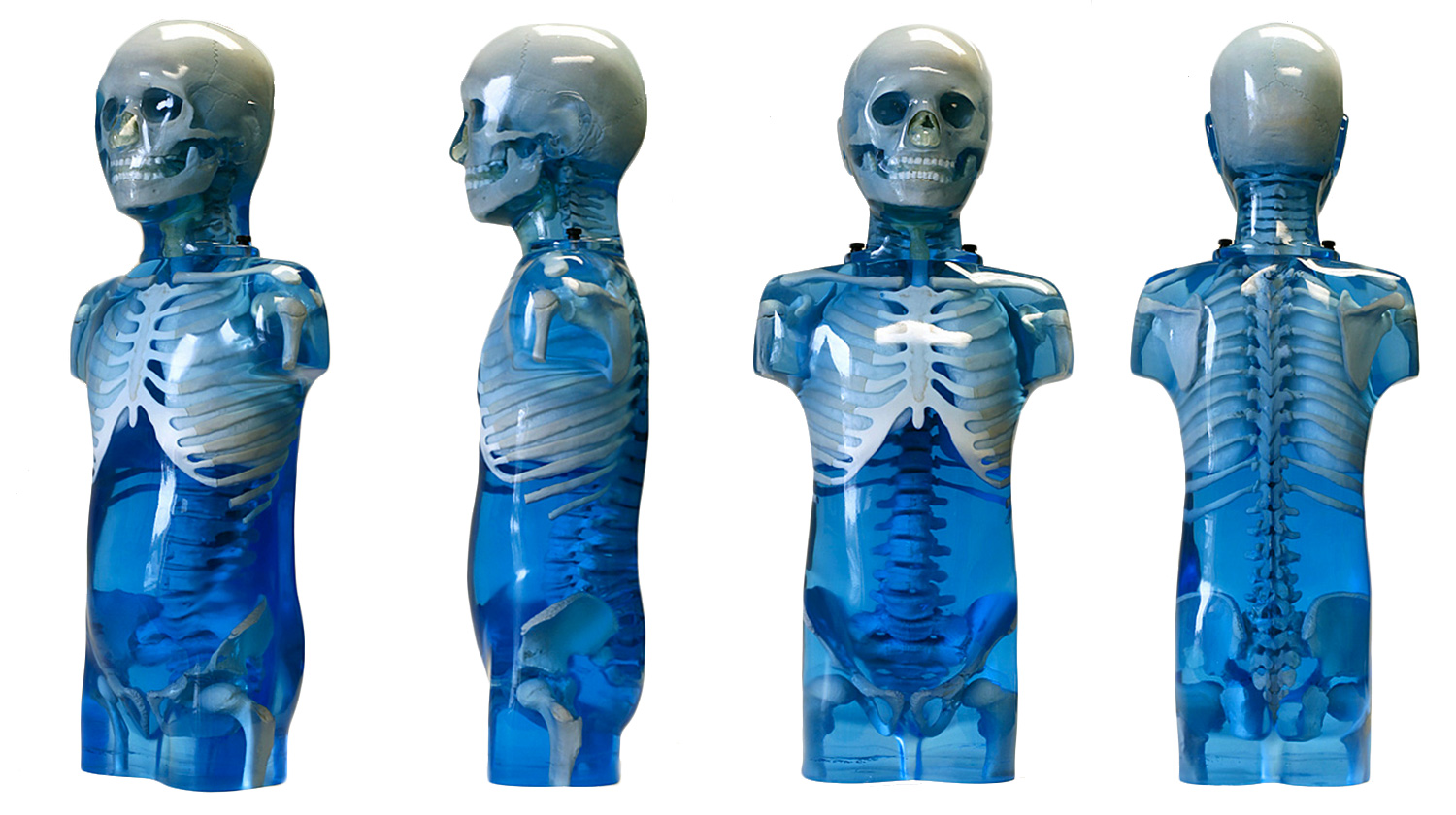

The phantom represents a typical 5-year old in both size and structure, making it portable and easy to position. The full body with head, arms and legs measures 110 cm (43 in) tall and weighs 20 kg (44 lb). The series consists of six sectional phantoms available separately or as a complete set.

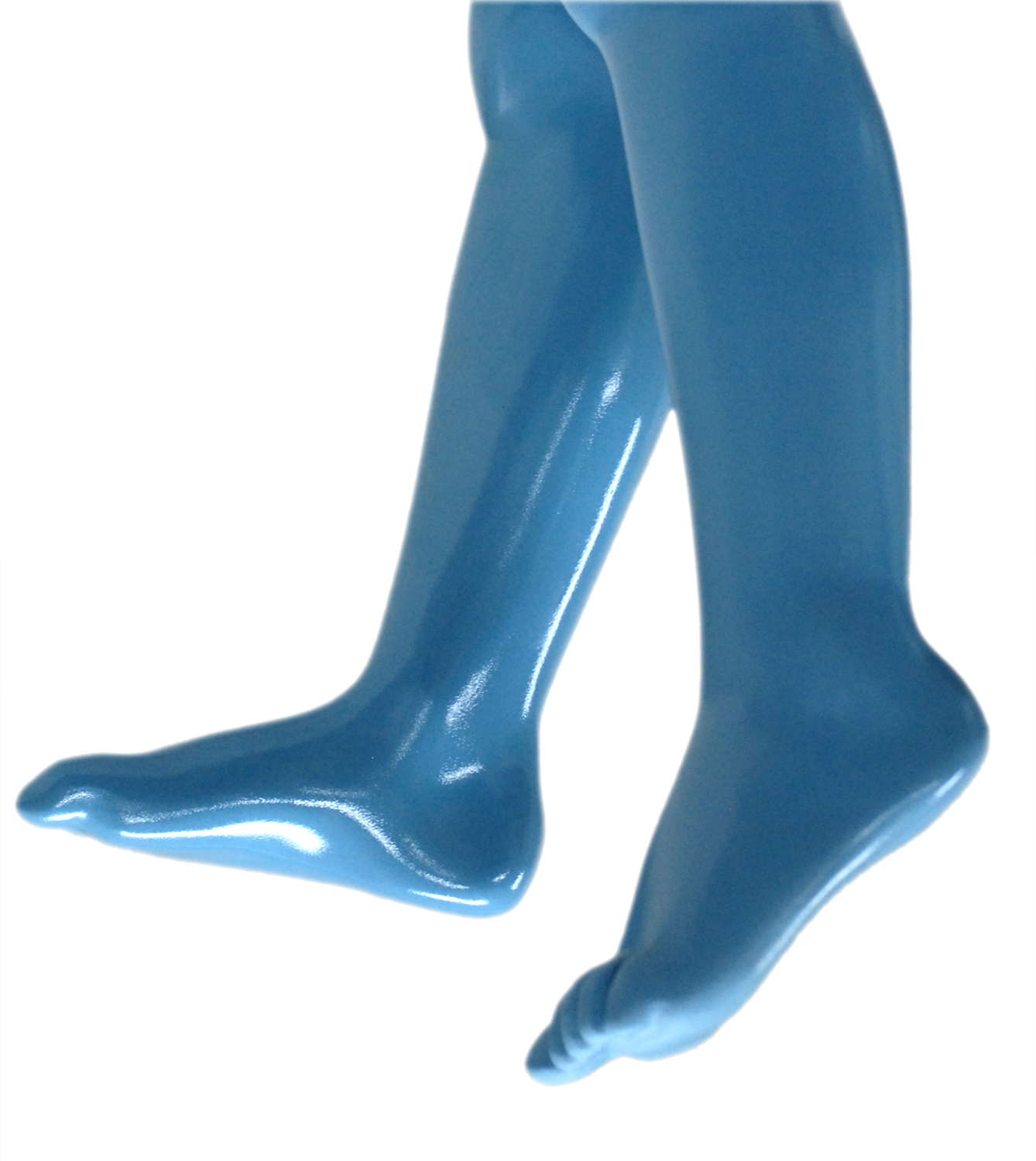

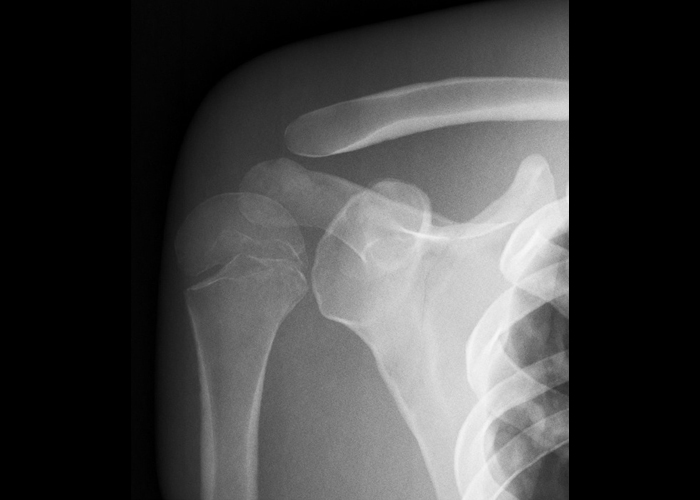

Right extremities are available in extended or flexed configurations. Left arm and leg are available with or without embedded fractures. The fracture versions contain the most common pediatric fracture types, including buckle fracture to tibia and common fracture to fibula; fracture to first metatarsal; radius fracture with open reduction and hardware and a common fracture to second intermediate phalange.

Components are made from propriety urethane and epoxy materials that mimic X-ray attenuation properties of human tissues for both diagnostic and therapy energy ranges (50 keV – 25 MeV). The materials are durable, impact resistant and suitable for continuous handling. Transparent soft tissue facilitates visual instruction of anatomical landmarks.

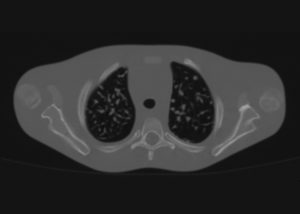

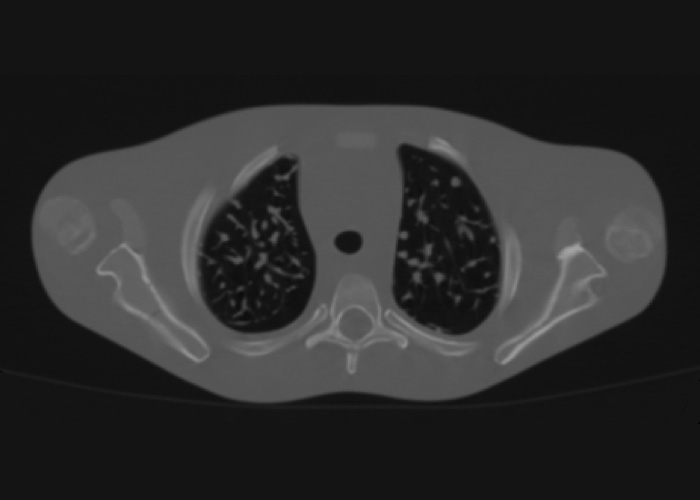

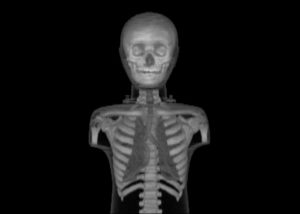

SPoRT TM can be used in film radiography, CR, DR and Computed Tomography.

  • Facilitates hands on training and feedback in an exciting and memorable way
  • Demonstrates the need for specialized views with certain pathologies
  • Allows for effective demonstration of changes in techniques
  • Promotes sensitivity and proficiency in patient handling and positioning
  • Effectively evaluate trainee performance

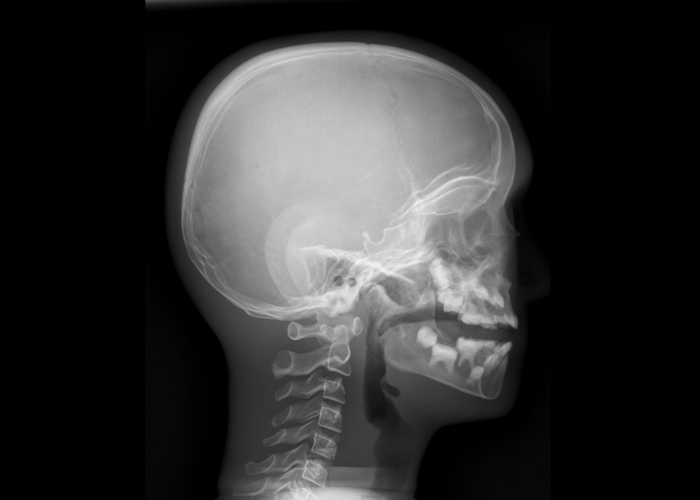

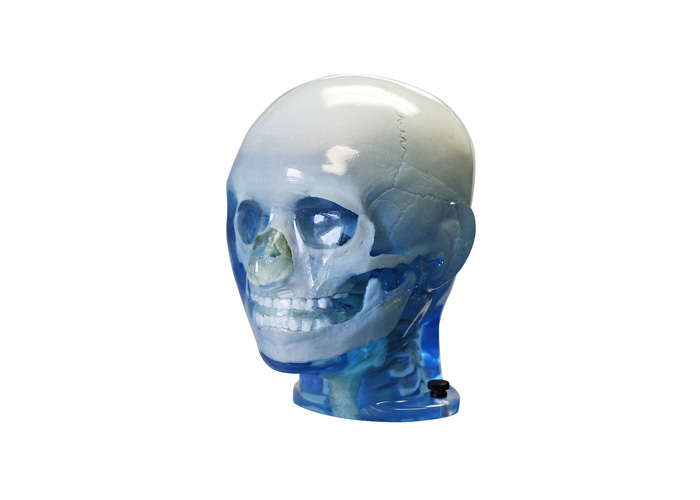

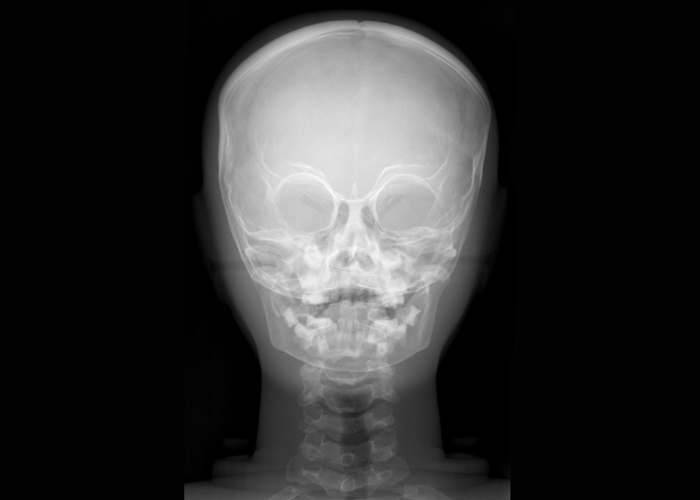

  • Deciduous and descending teeth with distinct dentine and enamel
  • Fully open sinus cavities

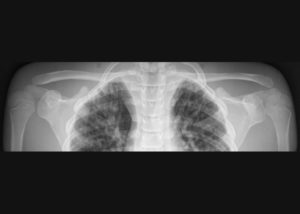

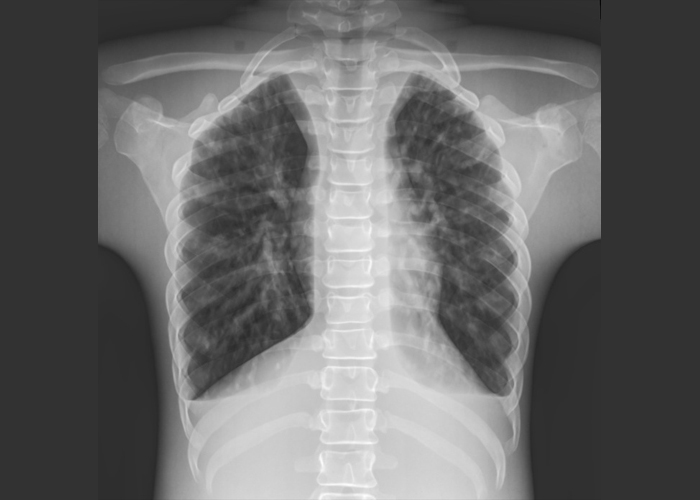

  • Anthropomorphic lung structure and vasculature

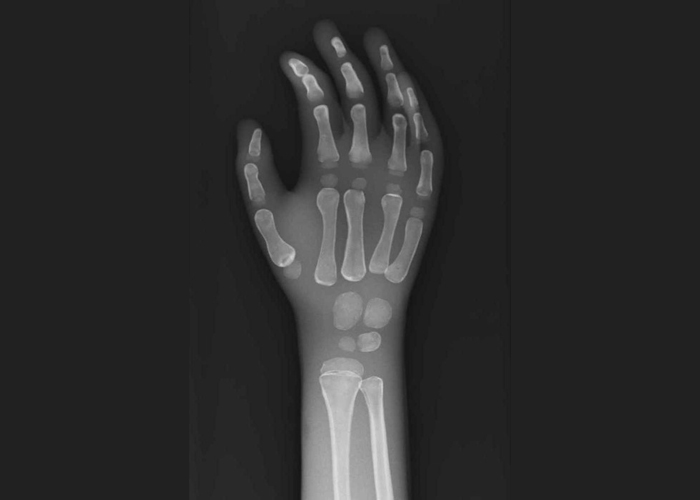

  • Bones contain cortical/trabecular distinction, growth plates and ossifications typical to a 5-year old

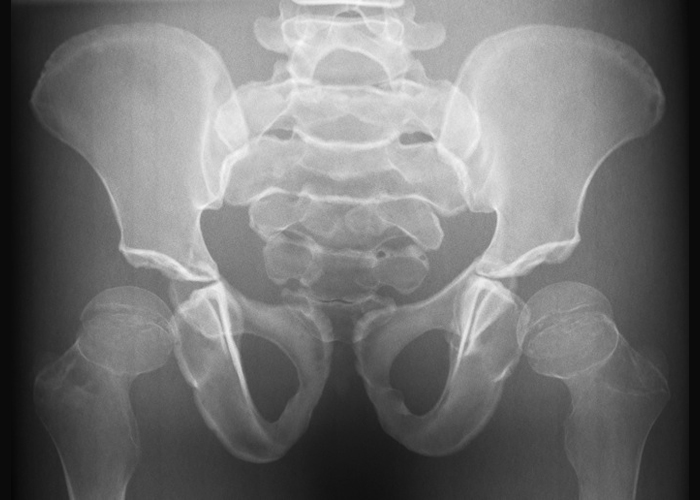

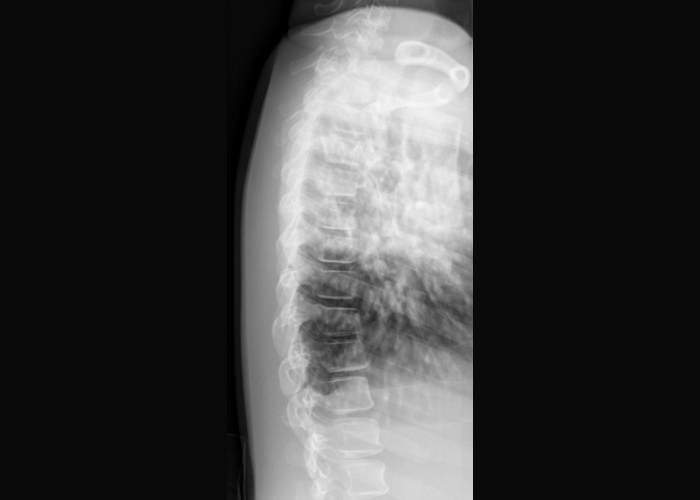

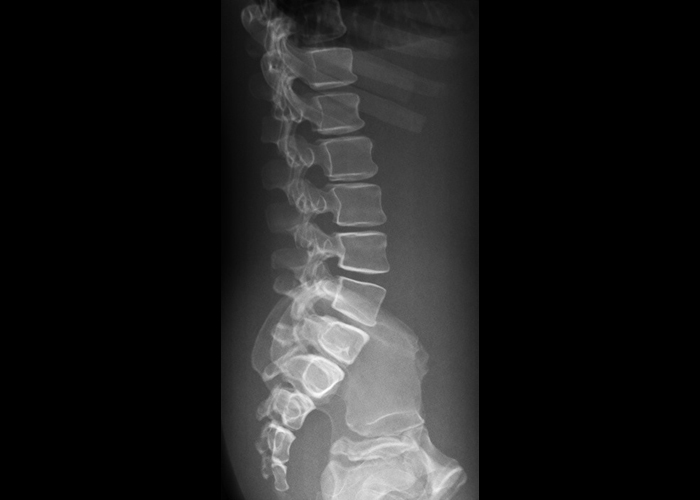

  • Certain bones of the spine and pelvis are atypical to a healthy 5-year old. The bones are modeled from human samples that include various anomalies
  • Specific pathologies can be custom manufactured if required

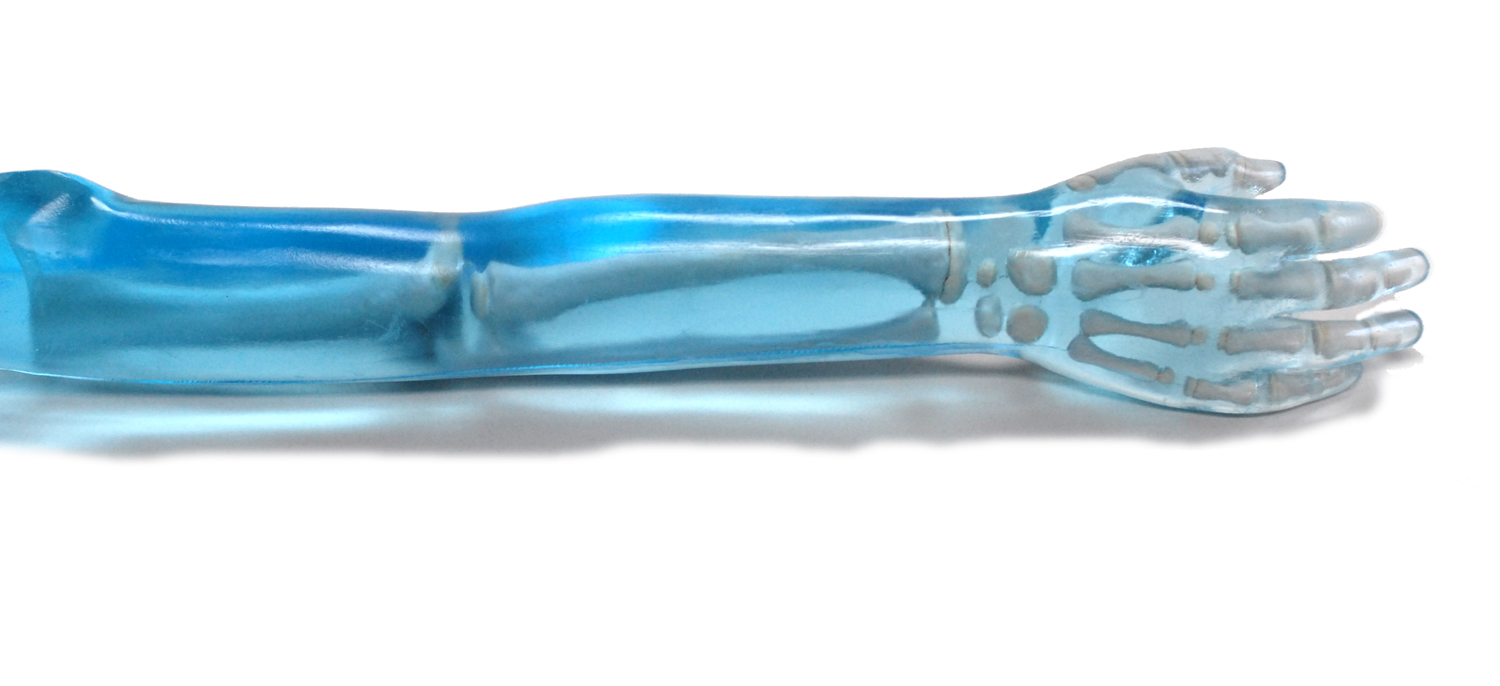

  • Translucent soft tissue to enable visualization of bony anatomy
  • Five most common fractures available in left appendages
  • Additional fractures or pathologies can be custom manufactured upon request
  • Optional large positioning stand and carry case available

Data Sheet

Pediatric Anthropomorphic Training Phantoms: Data Sheet


Model 715 Data Set – Axial, Sagittal & Coronal Slices (10mm)




Giacometti, V, et al. Software Platform for Simulation of a Prototype Proton CT Scanner. Medical Physics, 2017.
 Piersimoni, P., et al. The Effect of Beam Purity and Scanner Complexity on Proton CT Accuracy. American Association of Physicists in Medicine, 2017.
Ordoñez, C, et al. A Real-Time Image Reconstruction System for Particle Treatment Planning Using Proton Computed Tomography (PCT). Elsevier, 2017.
Johnson, R.P., et al. Results from a Prototype Proton-CT Head Scanner. Elsevier, 2017


Model: 715 Series Modality:
