Multi-Modality Breast Biopsy and Sonographic Trainer

Model 073
A Versatile Tool for Shaping Best Practices

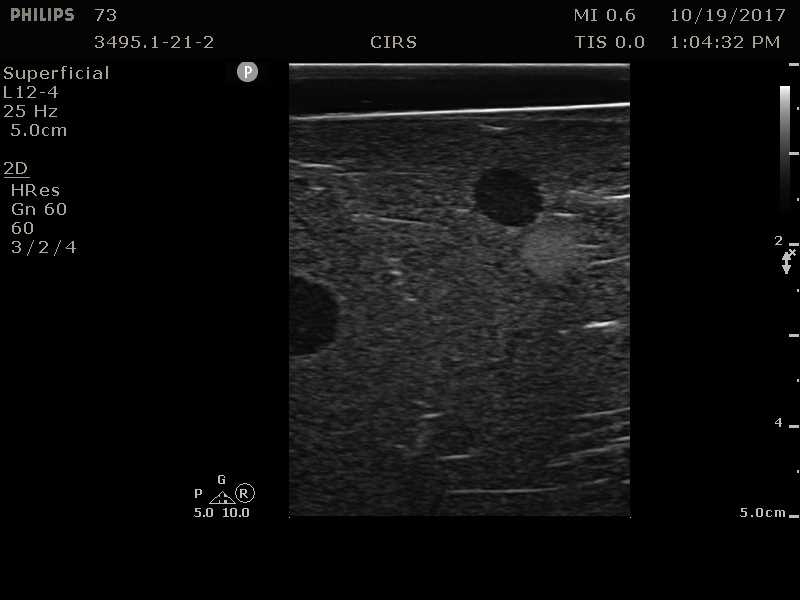

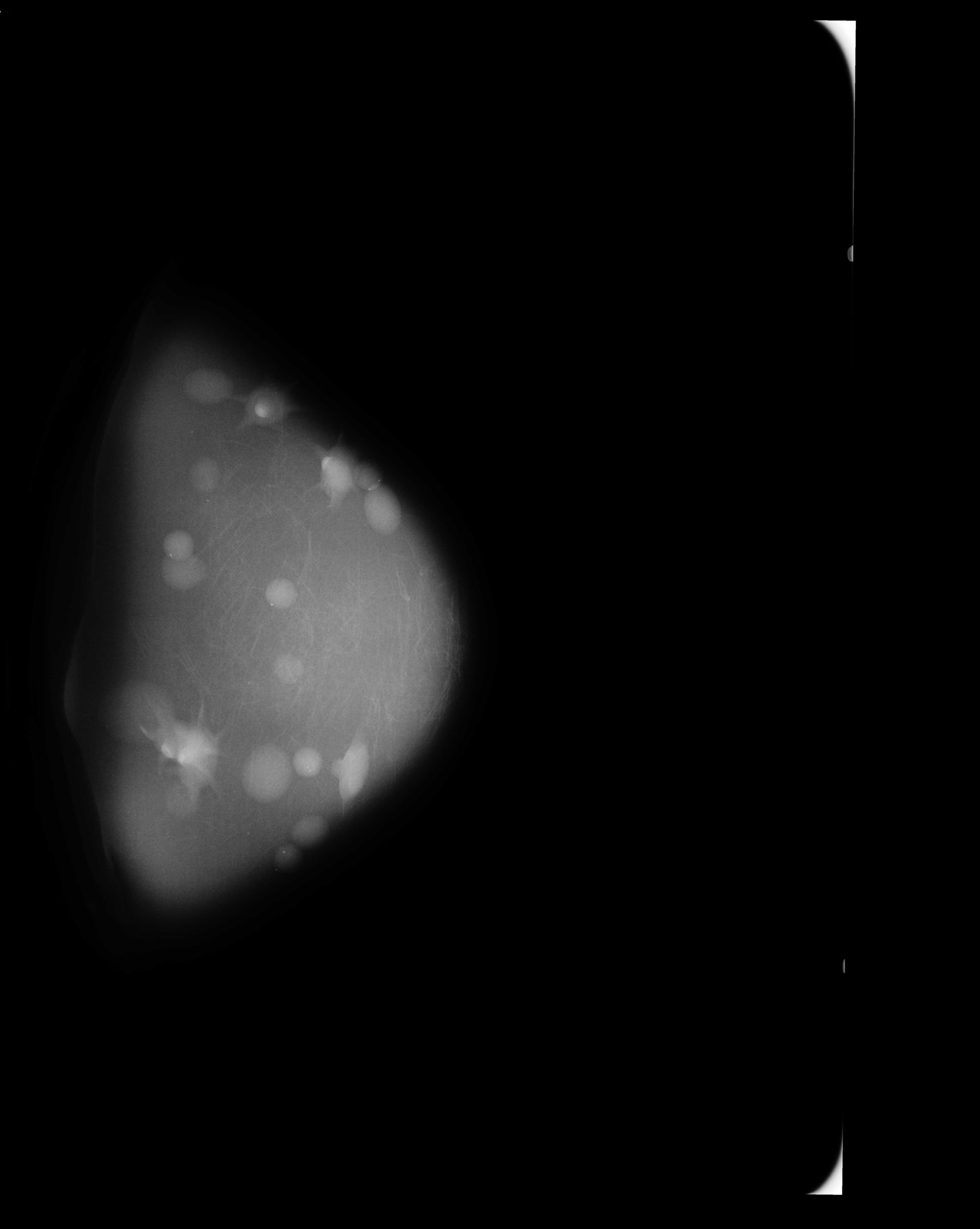

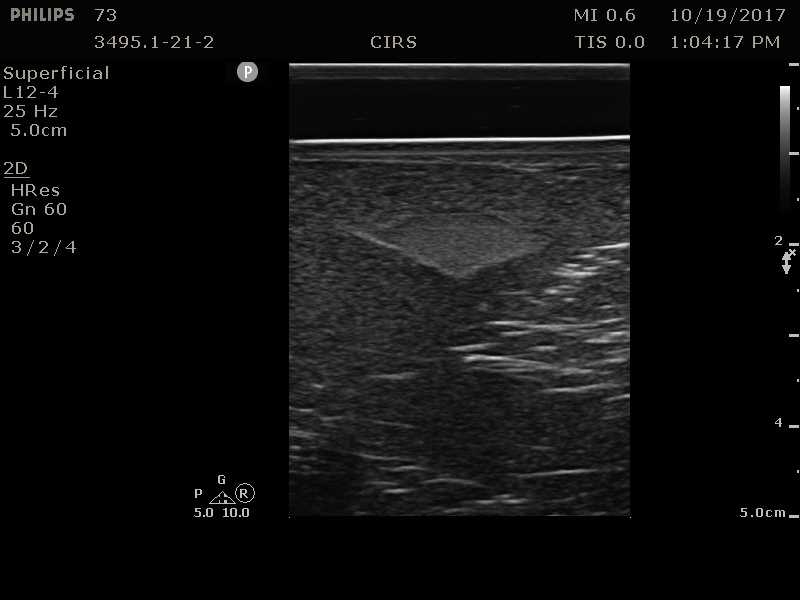

The CIRS Multi-Modality Breast Biopsy and Sonographic Trainer is designed to train users in various aspects of breast imaging and image-guided interventional procedures. Accurately mimicking the heterogeneous appearance of breast tissue under ultrasound, mammography, and MRI, the phantom features embedded cystic and dense lesions. Half of the phantom’s dense lesions have a spiculated shape, while the remaining are spherically shaped – with a 100-300 micron microcalcification embedded within. In addition to helping users identify different types of masses in the complex structure of the breast, the calcifications are useful markers for image registration between modalities.

Featuring Z-Skin™ Membrane

The phantom includes a patent-pending1 Z-Skin™ membrane that simulates the look and feel of skin during scanning and biopsy. The material closes up on itself after puncture with a needle, providing protection from desiccation even after multiple training sessions. The material inside the phantom is formulated to minimize the effect of needle tracks while practicing biopsy techniques. This material also has remarkable self-sealing properties, with tracks typically disappearing within minutes of needle removal. This capability supports re-use, as each mass may be biopsied multiple times.

  • Heterogeneous tissue to simulate imaging of human breast
  • Encased in flexible membrane for increased durability
  • Self-sealing material for extended phantom use
  • Cystic, dense, high stiffness and attenuative masses for biopsy training

Data Sheet

Multi-Modality Breast Biopsy and Sonographic Trainer: Data Sheet

Jush, Farnaz Khun; Biele, Markus; Dueppenbecker, Peter M; Maier, Andreas; 'Deep Learning for Ultrasound Speed-of-Sound Reconstruction: Impacts of Training Data Diversity on Stability and Robustness'. arXiv preprint arXiv:2202.01208. 2022; View
Sarno, D; Baker, C; Hodnett, M; Zeqiri, B; 'Phase-insensitive ultrasound computed tomography for acoustic attenuation imaging of breast phantoms'. Medical Imaging 2021: Ultrasonic Imaging and Tomography. 2021; 11602: 116020T. International Society for Optics and Photonics. View
Solberg OVV, Lindseth F, Bø LEE, et al. 3D ultrasound reconstruction algorithms from analog and digital data. Ultrasonics. 2011; 51(4):405-419.
Chun HY, Jung HC, Kim MT, Kim KG, Ko KL. Needle insertion force exerted on various breast tissues: Experimental study and finite element analysis. Biomed. Eng. Lett. 2012;2(3):173-178. View
C. Lee AW, Rajagopal V, Doyle A, F. Nielsen PM, Nash MP. Breast lesion co-localisation between X-ray and MR images using finite element modelling. Medical Image Analysis. 2013.  View
Nakano S, Yoshida M, Fujii K, et al. Real-time virtual sonography, a coordinated sonography and MRI system that uses magnetic navigation, improves the sonographic identification of enhancing lesions on breast MRI. Ultrasound Med Biol. 2012;38(1):42-9. View
Kousaka J, Nakano S, Ando T, et al. Targeted sonography using an image fusion technique for evaluation of incidentally detected breast lesions on chest CT: a pilot study. Breast Cancer. 2014;  View
Kocev, Bojan, Joachim Georgii, Lars Linsen, and Karl Horst. "Information Fusion for Real-time Motion Estimation in Image-guided Breast Biopsy Navigation." Workshop on Virtual Reality Interaction and Physical Simulation. N.p.: Eurographics AssociationThe Eurographics Association, 2014.
Park, S.B., JG Kim, KW Lim, et al. "A Magnetic Resonance Image-guided Breast Needle Intervention Robot System: Overview and Design Considerations." International Journal of Computer Assisted Radiology and Surgery, 2017. Web.  View
Cournane, S., Fagan, A., & Browne, J. (2012) Review of Ultrasound Elastography Quality Control and Training Test Phantoms. Ultrasound February vol. 20, no. 1-2. doi:10.1258/ult.2012.012e01  View
Long, Zaiyang, et al. “Clinical Acceptance Testing and Scanner Comparison of Ultrasound Shear Wave Elastography.” Journal of Applied Clinical Medical Physics, vol. 19, no. 3, 2018, pp. 336–342., doi:10.1002/acm2.12310.  View
