Phantom Patient for VMAT & IMRT

Model 136500

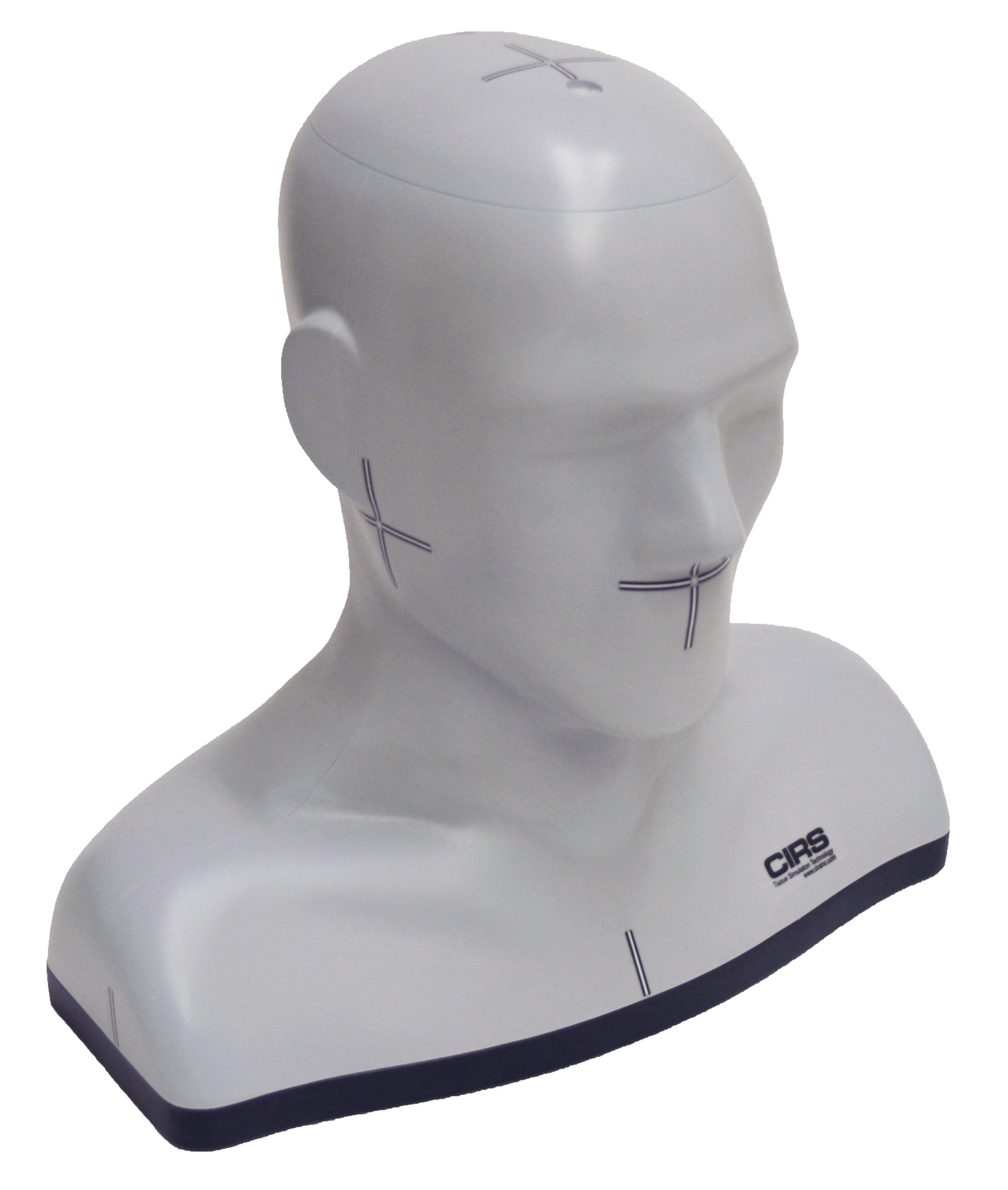

The CIRS Shoulder, Head and Neck End-to-End Verification Phantom (SHANE) is designed for end-to-end testing of treatment planning systems. The phantom can be used for every step in this process from imaging acquisition to dosimetry verification and patient-specific QA during head-and-neck VMAT and IMRT procedures.

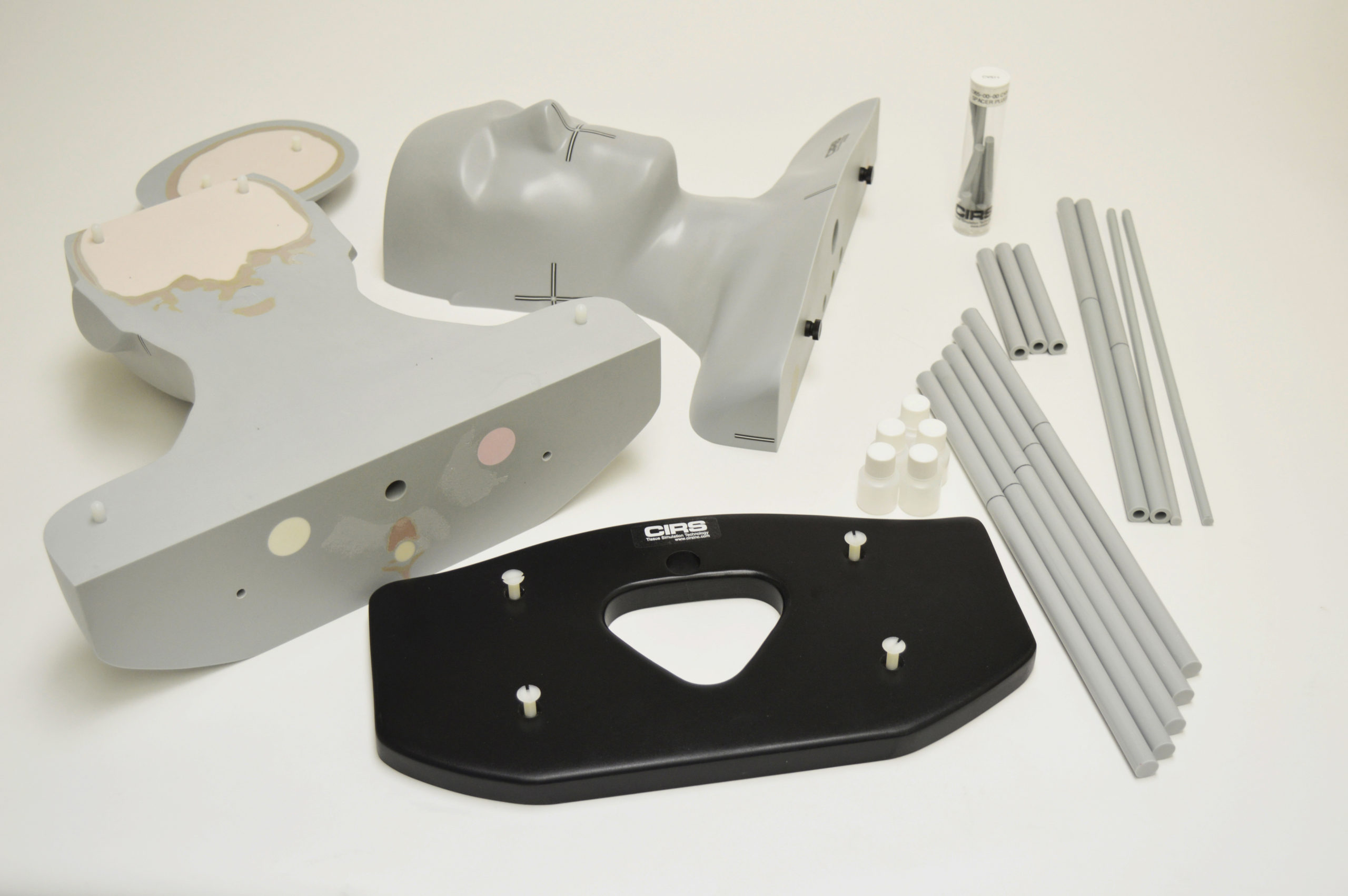

The head and shoulders are cut in the coronal plane to receive large radiochromic or radiographic film for treatment plan verification. The phantom also receives ion chambers or other detectors, which can be positioned in four parallel holes drilled through the phantom in the Inferior-Superior direction.

The high-fidelity anthropomorphic design contains complex internal anatomy that provides a realistic clinical simulation to evaluate the challenging effects of intra- and extracranial anatomies.

Head and shoulder portions are manufactured as a single piece to enable use with various fixation devices. The shoulder portion contains thoracic vertebrae, which enable TPS verification to the level of T2 vertebra. Shoulders also include tissue inserts for electron density calibration.

The phantom comes with carry case and 60-month warranty.

  • High fidelity phantom-patient
  • Suitable for use with various commercially available fixation devices
  • Enables dose measurements in large regions of head and neck through use of radiographic film
  • Allows dose measurements with ion chambers
  • Performs Electron Density calibration in shoulders

Data Sheet

Phantom Patient for VMAT & IMRT: Data Sheet

Dosimetry Cavity Codes

Cavity Codes for Dosimetry Devices


Model: 136500 Modality:
