Ultrasound Phantoms for 2D & 3D Evaluation

Model 055 & 055A
Designed for Compliance with AIUM Standards
  • Perform spatial measurement system checks according to published AIUM standard
  • Ensure over ten years of reliable use through reinspection and repair services

Includes best in industry four-year warranty

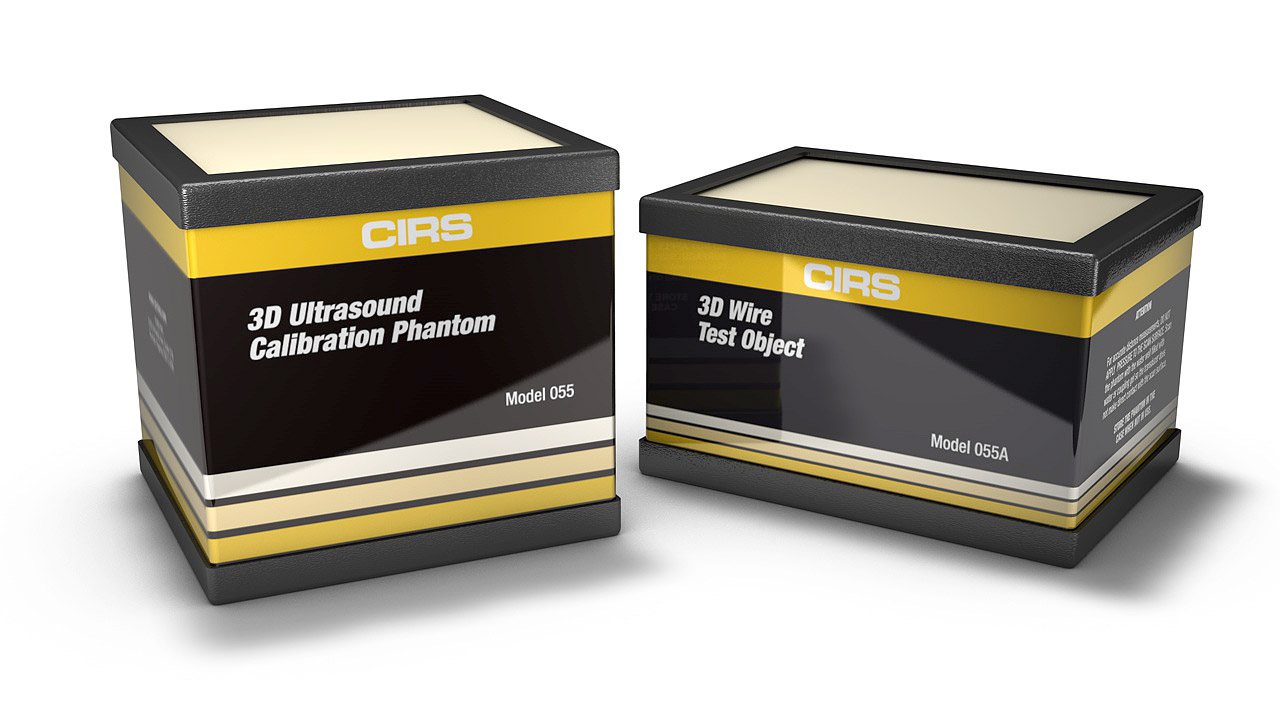

The CIRS Model 055 3D Ultrasound Calibration Phantom and 055A 3D Wire Test Object, may be used to perform the following tests of the accuracy of spatial measurements, which is especially for 3-D and 4-D ultrasound systems equipped with spatial encoding algorithms.

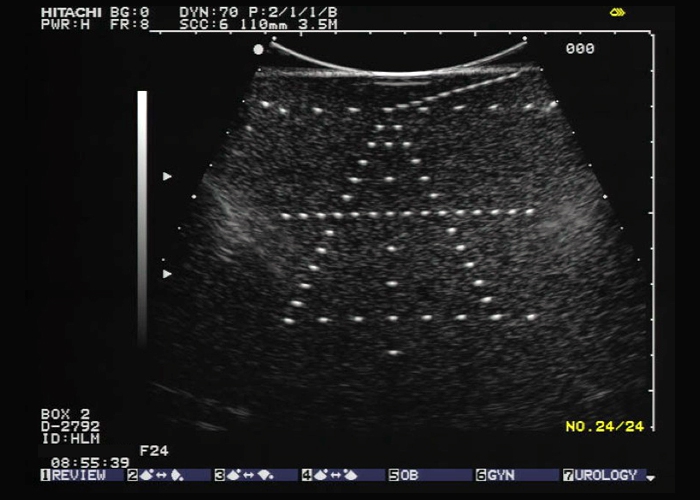

In the Model 055, these tests are performed with the aid of three volumetric targets, while in the Model 055A they are performed using wire targets.  The phantoms can also be used to perform Image uniformity and depth of penetration tests.

Both phantoms are made of CIRS, proprietary Zerdine® hydrogel polymer, which has been formulated to provide tissue mimicking properties including compatibility with harmonic imaging. To maximize phantom lifetime, this gel is contained in a rugged ABS plastic housing with a Saran- based laminate membrane.

CIRS ultrasound QA phantoms come standard with a robust housing, carry case, 48-month warranty, and user guide.

Key Tests with Models 055 & 055A
  • Linear Distance
  • Perimeter
  • Area
  • Surface Area
  • Volume

Data Sheet

Ultrasound Phantoms for 2D & 3D Evaluation

Compare all ultrasound products

Michael Aron, Marie-Odile Berger, Erwan Kerrien, Brigitte Wrobel-Dautcourt, Blaise Potard, et al.. Multimodal acquisition of articulatory data: Geometrical and temporal registration. Journal of the Acoustical Society of America, Acoustical Society of America, 2016, 139 (2), pp.13. <10.1121/1.4940666>. View
Amin VR, Wang B, Sonka M, Lauer RM. Three-dimensional ultrasound imaging of vessel wall for evaluating atherosclerosis risk and disease. SPIE International Society for Optical Engineering. 2002; Proc SPIE 4687(32):255-263. View
